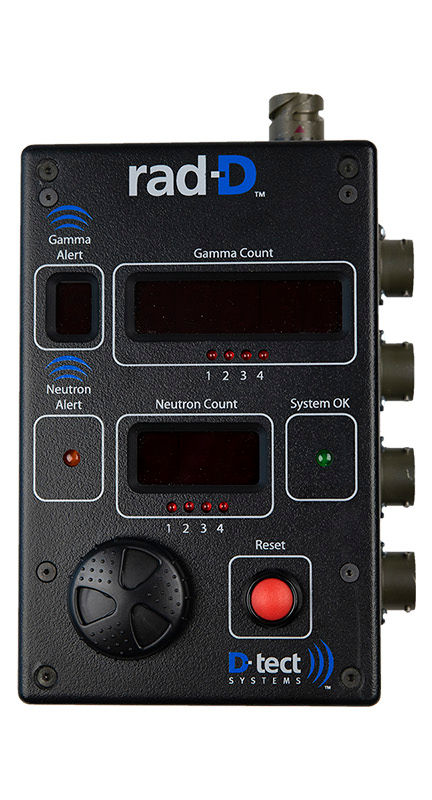

D-tect Systems Rad-D Fixed-position radiation detector (40 keV - 3 MeV)

Mission: Fixed-position radiation detector

Radiation Detector: 2" x 3" NaI(Tl) detector with PMT, He3 neutron detector

Energy Range: 40 keV - 3 MeV

Display:Large, intense LED displays

Power: 110V AC or 220V AC

Notification: .03 mR/hr above background radiation (audio/LED)

Response Time: < 1 Second

Calibration: Automatic

Dimensions: Detectors: 5" diam x 17.5"; Display box: 6.75" x 4.2" x 3"

Weight: Detectors: with lead shielding 27.5 lbs; no shielding 8.5 lbs; Display box: 1.5 lbs

Environment: Controlled environment or weather sealed, operates in high RF environments

The Rad-D, a part of the D-Series, is a fixed-position radiation detector that is used to monitor doorways, driveways, and loading docks. A versatile device, it senses gamma and neutron detection in under a second and can trigger active responses such as halting conveyor belts or lowering a blockade.
