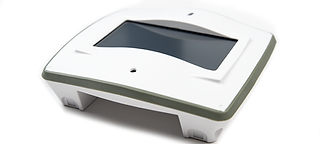

D-tect Systems Rad-DX Wireless mesh networked radiation detector (50 keV - 2 MeV)

Mission: Area Monitor

Radiation Detector: Large cesium iodide scintillation (CsI) crystal

Communication: D-tect SensorNet, Wi-Fi, Ethernet, USB

Energy Range : 50 keV - 2 MeV

Display: Optional bright LCD display

Battery Back-Up: Lithium Ion

Power: 110/240V AC, 50/60Hz

Response Time: < 1 Second

Dose Rate Range: 1 µRem/hr - 100 mRem/hr (0.01 µSv/hr - 1 mSv/hr)

Dose Rate Linear Error: +/-10%

Units: mrems/hr, µSv/hr, cps

Calibration: Automatic

Dimensions: 5.97" x 5.92" x 1.75"(15.2 cm x 15 cm x 4.4 cm)

Weight:

Non-display version: 0.5lb (0.2kg)

Display version: 0.65lb (0.3kg)

Environment: IP65 rated for indoor/ outdoor operation

NEMA Enclosure available for added environmental protection

Datasheet

The Rad-DX operates on the D-tect SensorNet - an automatic communication network that allows users to monitor a full network of Rad-DXs as long as they are in range of a single Rad-DX system! The Rad-DX units will automatically form an intelligent, self-healing mesh network, allowing them to be constantly connected to each other as well as to the user network.

Like the rest of the D-tect radiation products, a sensitive scintillation detector allows the Rad-DX to detect even faint sources of radiation within 1 second.
