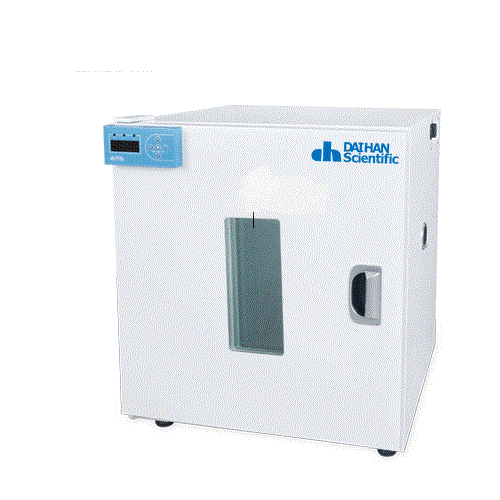

Built-in Viewing Window Model
Air Flow-type : Forced-air, Blower FAN
Capacity: 105 Lit
Temp.Range & Accuracy: Range: Room Temp +5°C to 250°C, Acurracy:±0.3°C at 100°C
Temp.Uniformity: ±1°C at 100°C
Temp.Sensor: PT 100
Heating Power/Consumption: 1.2 kW
Heat-up Time: 15 min. to 100 °C, 25 min. to 150°C
Recovery Time: Door open 30 sec, 3 min. to 100°C, 5 min. to 150°C
Timer & Alarm: 99hr 59 min (with delay/continuous run),Error Status and Timer-end
Display: Seven-segments FND
Controller: Digital Fuzzy Controller
Resolution: ±1°C-Control, ±1°C-Display
Shelves(included): (2ea) Stainless Steel Wire Shelves
Load per Rack: 16 kg
Permitted Total Load: 32kg (16kg x 2 shelves)
Ventilation: (2ea) Ventilation hole with Stainless-steel Cap, Hole Diameter 40mm
Safety Circuit: Over Temp. and Over Current Protector, Sensor Error Detector
Material:
+ Internal: Stainless-steel(#304)
+ External: Powder Coated Steel
+ Insulation: Glass Wool
Others: Storage Function (Temperature and Timer), Locking Mode
Dimension(w x d x h):
+ Interior(mm): 485 x 405 x 535
+ Exterior(mm): 656 x 685 x 891
Net Weight(kg): 70
Packing size(w x d x h)(mm): 710 x 762 x 970
Gross Weight(kg): 85
Power Consumption: 1.2 kW
Electrical Reqts: 1 Phase, AC,230V, 50/60Hz
Spare Stainless-steel Wire Shelf
DH.W0F11050 Wire Shelf, for 50 Lit, "OFS050", w340 x d310mm
DH.W0F11105 Wire Shelf, for 105 Lit, "OFS105", w455 xd375mm
DH.W0F11155 Wire Shel , for 155-/305-Lit, "OFS155", w520 x d440mm
