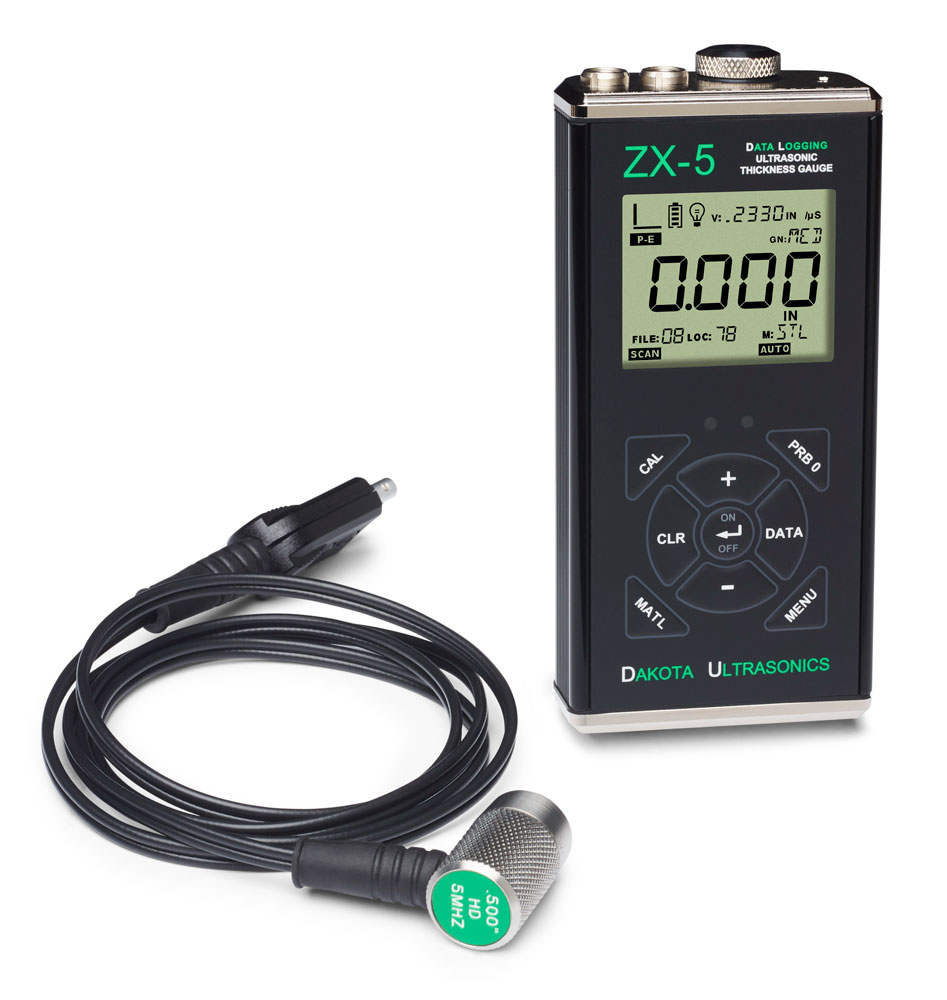

Measures from 0.025 to 36.00 inches (0.63 to 914.4 millimeters). Range dependent on material and transducer type.
Resolution: 0.001 inches (0.01 millimeters)
Velocity Range: 0.0120 to .7300 in/μs (305 to 18,542 m/sec)
Units: English & Metric
Zero : Manual or auto zero option.
High Speed Scan: Display the lowest reading found during a scan. Scan speed at 100Hz.
Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Nine tactile-feedback keys.
Size:
Width (2.5 in / 63.5 mm)
Height (5.17 in / 131.3 mm)
Depth (1.24 in / 31.5 mm)
Weight: 11 ounces (with batteries).
Operating Temperature: -22 to 167F (-30 to 75C).
Two 1.5V alkaline, or 1.2V NiCad (Option) or 1.5V Lithium AA cells (option)
Typically operates for 45 hours on alkaline and 23 hours on NiCad.
Data
Sequential data storage, 40 files of 250
readings per file, for 10,000 readings
(ZX-5 DL)
Software
Comes complete with USB download
cable (ZX-5 DL)
Differential Mode:
Display the +/- difference from a
nominal value entered
Alarm Mode:
High & low alarm limits with audible
and visual indicatiors
VX velocity:
Measure in terms of velocity for
nodularity testing
Optional accessory: RS232 serial or Bluetooth
modules available.
