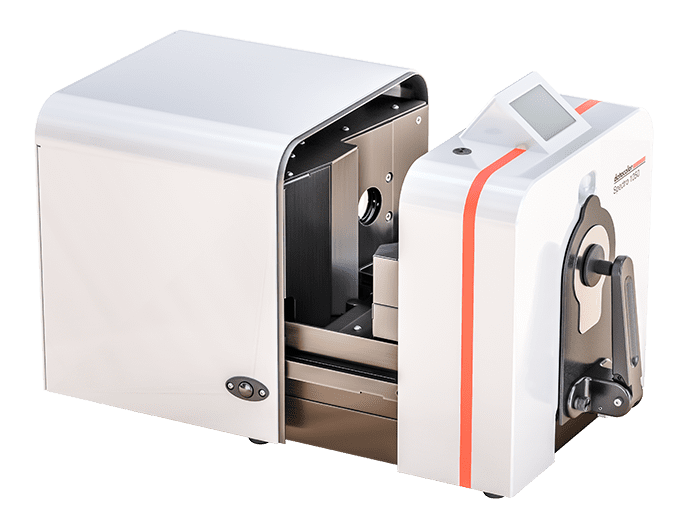

Datacolor Datacolor Spectro 750 Close-tolerance benchtop spectrophotometer (0 - 200%, horizontal)

Datacolor Spectro 700:Datacolor Spectro 700UV

Instrument Type:Horizontal Benchtop Spectrophotometer

Measurement Geometry:Diffuse illumination 8°viewing

Light Source:Pulsed xenon lamp

Sphere Diameter:152 mm/6in

Wavelength Range:360 nm -700 nm

Reporting interval:10 nm & 5 nm*

Photometric range:0-200%

Spectral Analyzer:Dual 256 diode array (software wavelength calibrated)

Wavelength Calibration Method:Via software adjustment

20 read repeatability on white tile using double flash (CIELAB) (1):0.03 (max)

Inter-instrument agreement: reflectance measurements (CIELAB)(1, 2 & 3):0.15 (avg) SCI; 0.30 (max) SCI

Sample Temperature:LAV aperture

IR Sensor Accuracy:±0.9°F/ ±0.5°C

Lens:4 position auto-zoom

Aperture Plates:

3 standard::

LAV (30 mm illuminated, 26mm measured)

SAV (9 mm illuminated, 5 mm measured)

USAV (6.6 mm illuminated, 2.5 mm measured)

2 optional::

MAV (20 mm Illuminated, 16 mm measured)

XUSAV (3.0 mm illuminated, 2.5 mm measured)

Aperture detection:Yes

Automated, adjustable UV calibration:Yes

UV cutoff filters:400 nm; 420 nm; 460 nm

Remote Measurement Button:Yes

Sample Positioning Camera:No

Transmittance:Total, Diffuse and Haze Transmittance, Regular Transmittance

Inter-instrument agreement – regular transmittance at 550 nm:±0.40% at 85% T; ±0.20% at 32% T

Inter-Instrument agreement -transmission haze measurements:±0.30% at 10% TH

Transmission sampling aperture size:22 mm

Functional Operating Environment (2):Temperature: 5°C to 40°C, *Recommended Temperature: 23°C +/- 1°C, Max Relative Humidity 20%-85% non-condensing. Recommended Relative Humidity 50% +/- 15% non-condensing

Vertical Mount:No

Optional Accessories:MAV Aperture Plate, XUSAV Aperture Plate, Textile Skein Holder, Glass Aperture Plate LAV, Cuvette (10 mm), Compression Sample Holder, 10 mm Transmission Cell, TerryCloth Fixture Kit, White Backing Tile & Grey Backing Tile

Physical Specifications:

Color Display:3.5 inch RGB LCD

Display Resolution:320×240 pixel resolution

Power Requirements:Input Voltage: 100-240VAC +/- 10% Frequency: 50/60 Hz

Power Consumption:80VA

Weight:54.5 lbs (24.7 kg)

Dimensions:Height: 15.3″ (38.86 cm) Width: 12.3″ (31.24 cm) Front to back: Length: 16.4″ (41.66 cm) Sample Arm To Back: Length 18.3″ (46.48 cm)

Recommended option:User Color Performance Monitoring Tool: Guardian

Data Interface:USB: 2.0 / Ethernet
