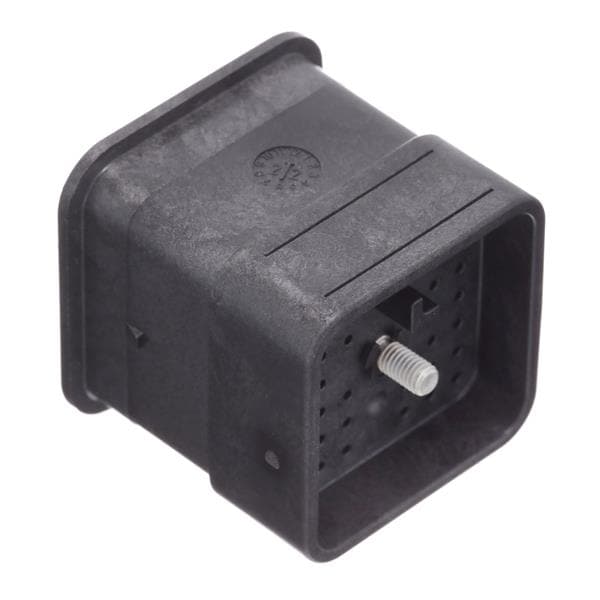

DEUTSCH - TE Connectivity AEC14-40PAE-E019 Housings REC, 40P, BLK, E, XCAP, A

Color: Black

Pitch: 5.41 mm (0.213 in)

Width: 51.26 mm

Gender: Receptacle (Female)

Height: 50.83 mm

Length: 52.53 mm

Application: Power, Signal

Row Spacing: 5.41 mm

Unit Weight: 94 g

Contact Type: Plug

REACH - SVHC: Details

Contact Gender: Without Pin Contacts

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 7 Row

Voltage Rating: 250 VDC

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Polyetherimide (PEI)

Wire Gauge Range: 14 AWG to 20 AWG

Lock Mate Feature: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP67

Flammability Rating: UL 94 HB

Number of Positions: 40 Position

Description/Function: DEUTSCH DRC, Housing for Male Terminals

Attachment Hole Diameter: 1.5 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
