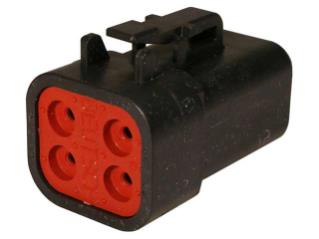

Color: Black
Pitch: 6.71 mm (0.264 in)
Width: 22.05 mm
Gender: Plug (Male)
Height: 24.38 mm
Length: 34.65 mm
Material: Plastic
Insulation: Insulated
Application: Wire to Wire
Row Spacing: 10.16 mm
Unit Weight: 10 g
Mating Gender: Receptacle
Contact Gender: Without Socket Contacts
Current Rating: 25 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 200 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 14 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 12 AWG to 14 AWG
Locking Mechanism: Integrated in Housing
Termination Style: Crimp
Ingress Protection: IP68
Mating Part Number: DTP04-4P-xxxx
Number of Positions: 4 Position
Attachment Hole Diameter: 2.5 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
