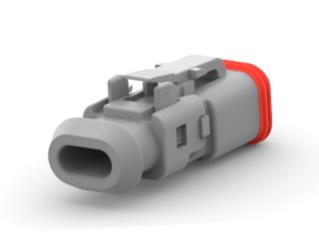

Color: Gray
Pitch: 5.46 mm (0.215 in)
Width: 17.34 mm
Gender: Plug (Male)
Height: 15.77 mm
Length: 42.2 mm
Dimensions: 42.2 mm x 17.34 mm x 15.77 mm
Application: Power, Signal
Contact Gender: Socket (Female)
Current Rating: 13 A
Housing Gender: Plug (Male)
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Voltage Rating: 250 VAC/DC
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 14 AWG to 20 AWG
Termination Style: Crimp
Ingress Protection: IP6K9K, IP68
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
