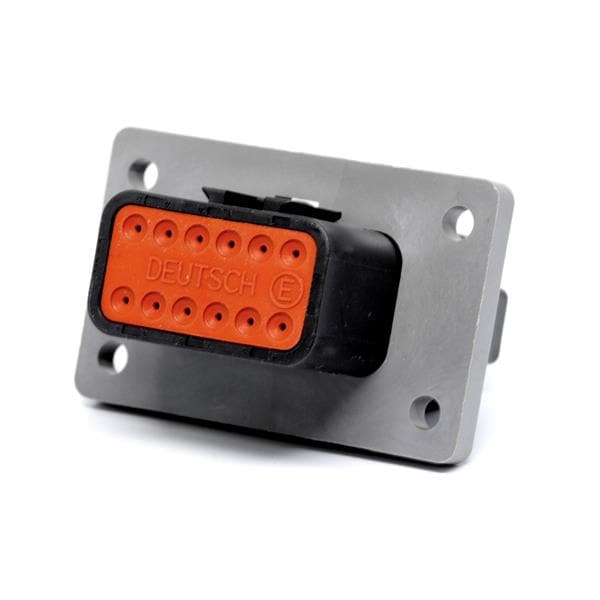

Pitch: 9.12 mm (0.359 in)
Gender: Receptacle (Female)
Height: 22.25 mm
Length: 45.92 mm
Dimensions: 40.56 mm x 22.25 mm x 45.92 mm
Insulation: Insulated
Row Spacing: 4.45 mm
Unit Weight: 26.490 g
REACH - SVHC: Details
Mating Gender: Plug
Contact Gender: Pin (Male)
Current Rating: 13 A
Housing Gender: Receptacle (Female)
Mounting Angle: Straight
Mounting Style: Mounting Flange
Number of Rows: 2 Row
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Wire Gauge Range: 14 AWG to 20 AWG
Termination Style: Crimp
Ingress Protection: IP68, IP6K9K
Mating Part Number: DT06-12SB
Number of Positions: 12 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
