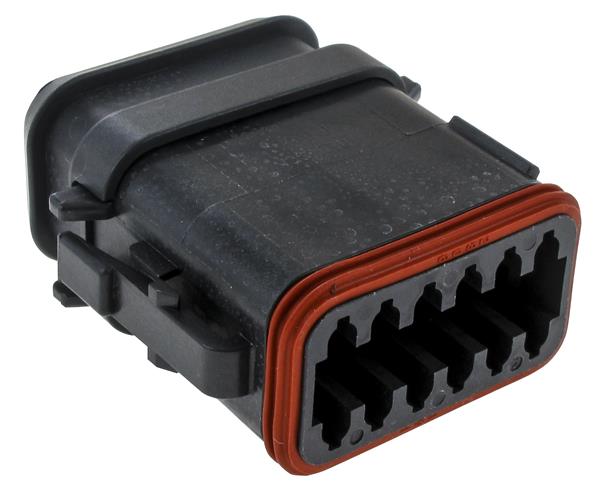

Color: Black
Pitch: 9.12 mm (0.359 in)
Width: 18.19 mm
Gender: Plug (Male)
Height: 40.56 mm
Length: 30.94 mm
Material: Plastic
Dimensions: 18.19 mm x 40.56 mm x 30.94 mm
Insulation: Insulated
Row Spacing: 4.45 mm
Unit Weight: 19 g
Mating Gender: Receptacle
Contact Gender: Socket (Female)
Current Rating: 13 A
Housing Gender: Plug (Male)
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 14 AWG to 20 AWG
Termination Style: Crimp
Ingress Protection: IP68, IP6K9K
Mating Part Number: DT04-12PB
Number of Positions: 12 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
