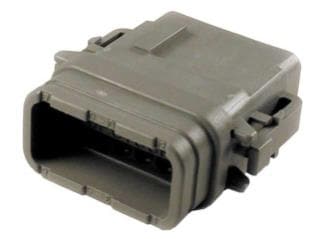

Color: Gray
Pitch: 4.19 mm (0.165 in)
Width: 15.24 mm
Gender: Plug (Male)
Length: 30.1 mm
Material: Plastic
Dimensions: 15.24 mm x 40.01 mm x 30.1 mm
Insulation: Insulated
Row Spacing: 7.11 mm
Unit Weight: 13 g
REACH - SVHC: Details
Mating Gender: Receptacle
Contact Gender: Without Socket Contacts
Current Rating: 7.5 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 250 V
Wire Gauge Max: 16 AWG
Wire Gauge Min: 22 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 22 AWG to 16 AWG
Locking Mechanism: Integrated in Housing
Termination Style: Crimp
Ingress Protection: IP68, IP6K9K
Mating Part Number: DTM04-12SA
Number of Positions: 12 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
