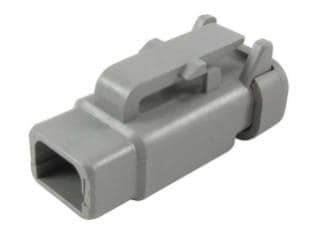

Color: Gray
Pitch: 4.19 mm (0.165 in)
Width: 12.07 mm
Gender: Plug (Male)
Height: 12.9 mm
Length: 27.56 mm
Material: Plastic
Dimensions: 12.07 mm x 12.9 mm x 27.56 mm
Insulation: Insulated
Application: Wire to Wire
Unit Weight: 3.010 g
REACH - SVHC: Details
Mating Gender: Receptacle
Contact Gender: Without Socket Contacts
Current Rating: 7.5 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Voltage Rating: 250 V
Wire Gauge Max: 16 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 16 AWG to 20 AWG
Locking Mechanism: Integrated in Housing
Termination Style: Crimp
Ingress Protection: IP68, IP6K9K
Mating Part Number: DTM04-2P-xxxx
Number of Positions: 2 Position
Attachment Hole Diameter: 1 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
