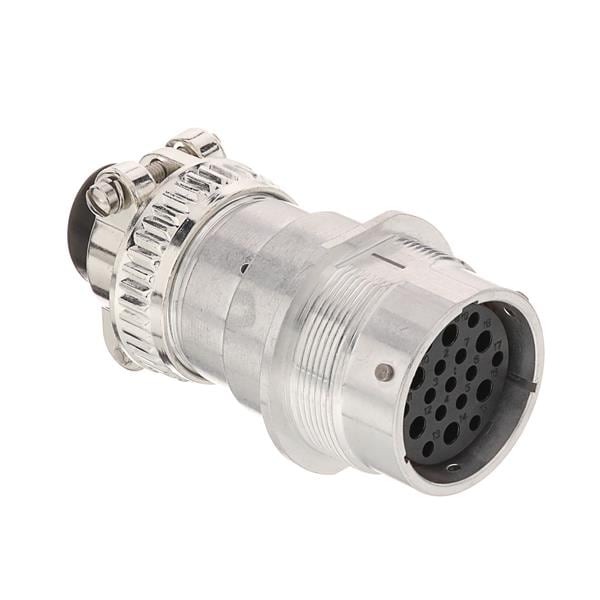

Width: 50.8 mm
Gender: Receptacle (Female)
Height: 47.53 mm
Length: 41.83 mm
Material: Aluminum
Dimensions: 50.8 mm x 47.53 mm x 41.83 mm
Application: Wire to Wire
Unit Weight: 143.275 g
REACH - SVHC: Details
Contact Gender: Without Socket Contacts
Current Rating: 13 A, 25 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 250 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 20 AWG
Housing Material: Aluminium
Wire Gauge Range: 10 AWG to 20 AWG
Locking Mechanism: Integrated in Housing
Termination Style: Crimp
Ingress Protection: IP67
Mating Part Number: HD36-24-XXXX
Number of Positions: 19 Position
Attachment Hole Diameter: 2.5 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
