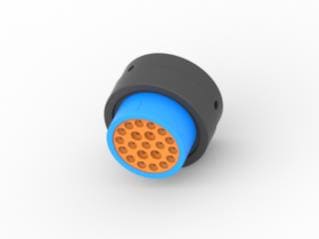

Color: Black
Width: 49.53 mm
Gender: Plug (Male)
Height: 49.53 mm
Length: 38.63 mm
Material: Plastic
Dimensions: 49.53 mm x 49.53 mm x 38.63 mm
Application: Wire to Wire
Unit Weight: 51 g
Mating Gender: Receptacle
Contact Gender: Without Pin Contacts
Current Rating: 13 A, 25 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 250 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 10 AWG to 20 AWG
Locking Mechanism: Integrated in Housing
Termination Style: Crimp
Ingress Protection: IP67
Mating Part Number: HDP24-24-21
Flammability Rating: UL 94 V-1
Number of Positions: 21 Position
Attachment Hole Diameter: 2.5 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
