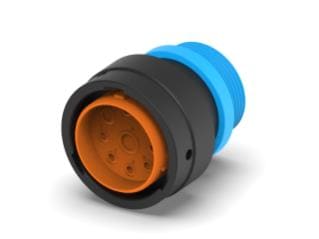

DEUTSCH - TE Connectivity HDP26-24-9PE-L015 Connectors PLG, 9P, BLK, E, THD, 4/8/12, P

Color: Black

Width: 49.53 mm

Gender: Plug (Male)

Height: 49.53 mm

Length: 42.55 mm

Dimensions: 49.53 mm x 49.53 mm x 42.55 mm

REACH - SVHC: Details

Mating Gender: Receptacle

Contact Gender: Without Pin Contacts

Current Rating: 25 A, 60 A, 100 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Housing Material: Polyamide (PA)

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HDP24-24-9XX

Number of Positions: 9 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
