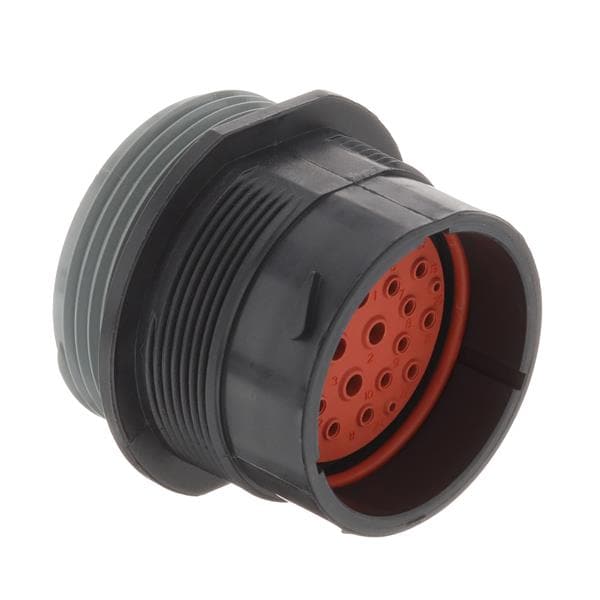

Color: Black
Width: 50.8 mm
Gender: Receptacle (Female)
Height: 47.63 mm
Dimensions: 50.8 mm x 47.63 mm x 41.53 mm
Application: Wire to Wire
Mating Gender: Plug
Contact Gender: Without Pin Contacts
Current Rating: 7.5 A, 13 A, 25 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 250 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 22 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 10 AWG to 22 AWG
Locking Mechanism: Integrated in Housing
Termination Style: Crimp
Ingress Protection: IP67
Mating Part Number: HDP26-24-XXP
Number of Positions: 29 Position
Attachment Hole Diameter: 2.5 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
