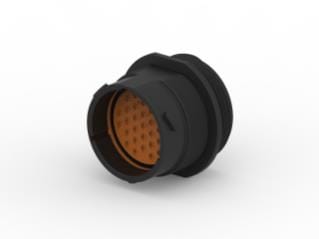

DEUTSCH - TE Connectivity YHDP24-24-31PEL024 Housings RCPT SIZE 24 HDP -L024

Color: Black

Width: 50.8 mm

Gender: Receptacle (Female)

Height: 47.63 mm

Length: 41.53 mm

Dimensions: 50.8 mm x 47.63 mm x 41.53 mm

Application: Wire to Wire

Unit Weight: 48.080 g

Contact Gender: Without Pin Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Housing Material: Polyamide (PA)

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HDP26-24-XXP

Number of Positions: 31 Position

Attachment Hole Diameter: 1.5 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
