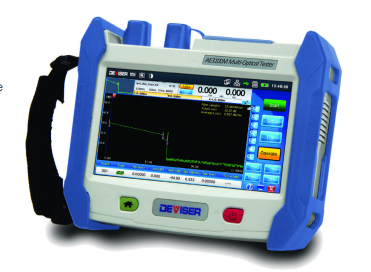

Deviser AE3100DM Quad MM/SM Handheld OTDR (850/1300/1310/1550)

Wavelengths (nm): 850/1300/1310/1550

Dynamic range (dB): 25/27/40/38

Wavelength Accuracy: ± 20nm

Event Dead Zone:

  Single-mode: ≤0.8m

  Multi-mode: ≤0.8m

Attenuation Dead Zone:

  Single-mode: ≤4m

  Multi-mode: ≤5m

Distance Range:

  Single-mode: 100m, 400m, 1.5km, 3km, 6km, 12km, 25km, 50km, 100km, 200km, 400km

  Multi-mode: 100m, 400m, 1.5km, 3km, 6km, 12km, 25km, 50km

Pulse Width:

  Single-mode: 3ns, 5ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1μs, 2μs, 5μs, 10μs, 20μs

  Multi-mode: 5ns, 10ns, 30ns, 50ns, 100ns, 200ns, 500 ns, 1μs

Sampling Resolution: 5cm ~ 6.4m

Sampling Points: 256,000 max

Distance Accuracy (m): ±(0.75m + 0.005% x Distance + Sampling Resolution)

Group Refractive Index: 1.300000 ~ 1.700000

Loss Threshold: 0.01dB

Loss Resolution: 0.001 dB

Refresh Rate: 4 fields/second

Reflectance Accuracy: ± 2dB

Measurement Time Range: 5s ~ 5min, real time

Data Storage: >10,000 OTDR traces, exportable to USB or PC
