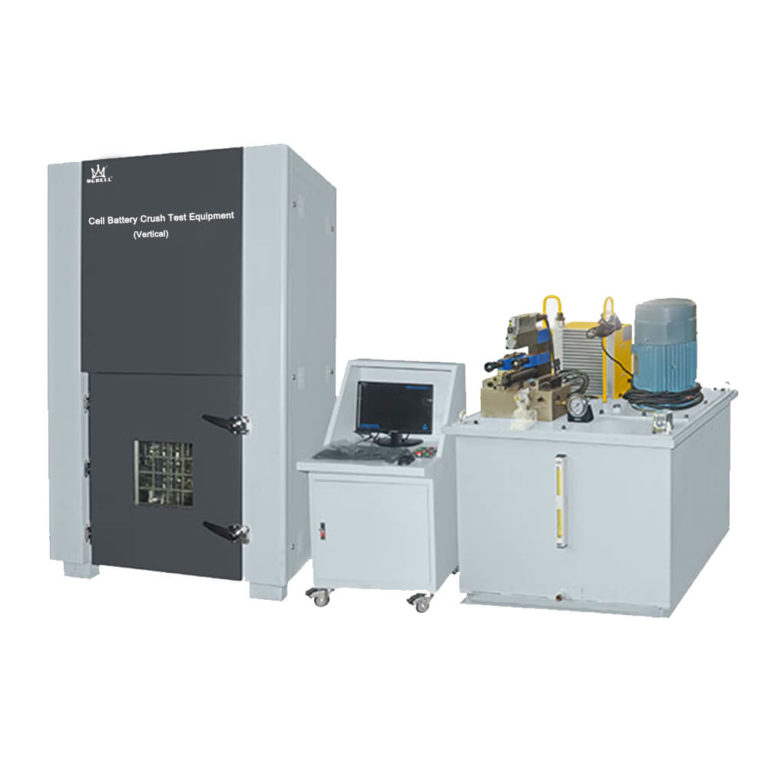

Pressure（T）: 20
Structure: Vertical Type
Crush Method: Vertical
Chamber: Independent vertical test machine and control system
Testing Space: W600 X D600 X H400mm
Overall Dimension: W1300 X D800 X H2100mm
Power Source: AC380V 50HZ
Crush Speed: 1~400mm/min（Controllable）
Test Condition: Force, displacement（deformation）, voltage, one of three of combined
Control Method: Computer remote Control
Drive Method: Electro hydraulic servo
Crush Accuracy: ±0.5%
Crush Deformation: 0~100% multi gear set ，available for multi layer crush deformation
Main voltage acquisition channel: 1 channel
Crush Fixture: Half cylinder crush head with radius 75mm,fixtures in different size upon different standards
Data Acquisition Module: Independent remote sampling, multi voltage, temperature, current acquisition channel(optional); Acquistion frequency 100Hz
Safety Alarm Device: Electrical leakage, over temperature, over voltage, over loading, over current protection, abnormal sound light alarm, smoke alarm etc.
Safety Device: Camera monitoring system, safety and explosion protection system, smoke emission system, smoke alarm device, explosion proof lighting device, etc.
Standard Configuration: Crush machine, computer cabinet, control software, voltage current temperature sampling system, crush fixture, camera monitoring system, fire- extinguishing system, computer
