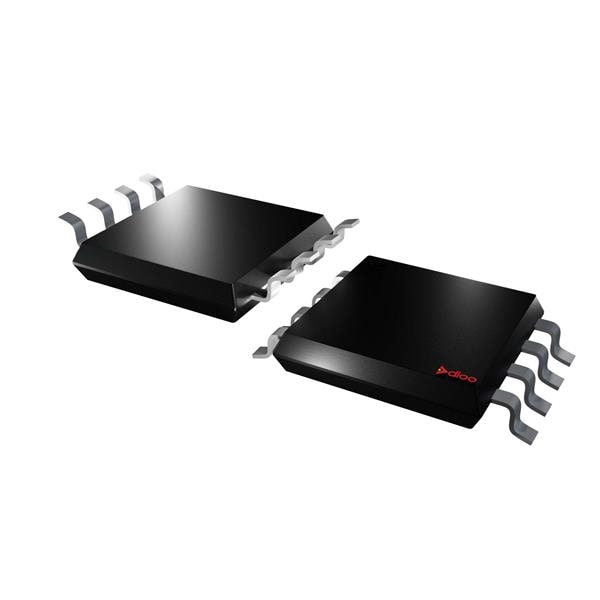

DIOO DIO2210CS8 Current Sense Amplifiers 75 V Common-Mode Voltage, High-Side Current-Sense Amplifier with Comparator and Reference
Manufacturer: DIOO Model: DIO2210CS8 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Gain V/V: 20 V/V
Shutdown: No Shutdown
Topology: 3 V/us
Settling Time: 25 us
Mounting Style: SMD/SMT
SR - Slew Rate: 3 V/us
Voltage Gain dB: 200 V/mV
Number of Channels: 1 Channel
Supply Voltage - Max: 40 V
Supply Voltage - Min: 3 V
Ib - Input Bias Current: 220 uA
Operating Supply Current: 620 uA
Vcm - Common Mode Voltage: - 100 mV to 75 V
Vos - Input Offset Voltage: 20 uV
GBP - Gain Bandwidth Product: 440 kHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
en - Input Voltage Noise Density: 70 nV/sqrt Hz
CMRR - Common Mode Rejection Ratio: 100 dB
