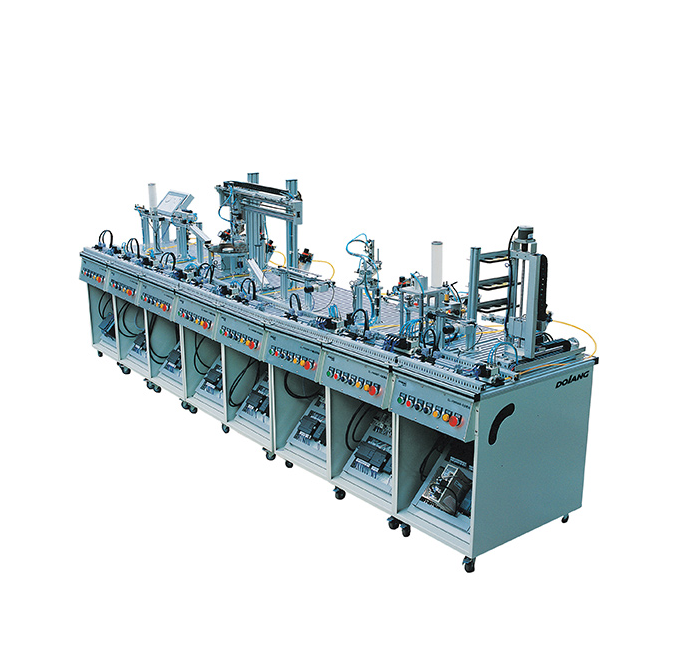

DOLANG DLMPS-800A Modular flexible production system

● Total dimension: 3600×790×1280mm

● Input power: single-phase, three-wire AC 220V±10% 50Hz/60Hz

● Capacity: <5KVA

■ Optional

● Computer, computer table

● PLC module

● Air compressor

Details

Datasheet


● The system is composed of distribution unit, handling unit, processing unit, handling sorting unit, conveyor belt unit, manipulator handling unit, assembly unit, classification storage unit.

● The main components of the system including: PLC, industrial HMI, switching power supply, hopper, classification silo, silo transposition parts, workpiece push parts, sliding push parts, up and down rocker arm part, drill motor, detection cylinder assembly, translation table, rotary table, cylinders, solenoid valves, DC gear motors, manipulator, ball screw, gripper, vacuum generator, tower crane, industrial sensors, variety of detection switches, buttons, I/O interface board and communication interface board.
