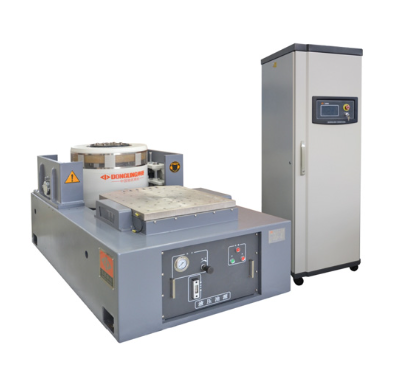

Dongling ES-1-150 Air-cooled Vibration Test System (1/1, 2KN)

Sine/Random Force (kN): 1/1

Shock Force @6ms (kN): 2

Frequency Range (Sine) (Hz): 5-4500

Frequency Range (Random) (Hz): 5-4500

Max. Acceleration (Sine) (g): 50

Max. Acceleration (Random) (g): 30

Max. Velocity (m/s): 2

Max. Displacement (mm): 25

Max. Load (kg): 70

Resonance Point (Hz): 3900

Shaker Model: ET-1-150

Moving Part Mass (kg): 2

Armature Diameter (mm): 150

Mass (kg): 395

Dimension (L*W*H) (mm): 696*618*653

Isolation Airbag Resonance Frequency (Hz): 3

Power Amplifier Model: SDA-1

Output Power (kVA): 1

Power Consumption (kVA): 4

Mass (kg): 160

Dimension (L*W*H) (mm): 607*1003*1545

Blower Model: B-200

Power (kW): 0.75

Flow Rate (m3/s): 0.1

Pressure (kPa): 2

Dimension (L*W*H) (mm): 498*373*905

Mass (kg): 30
