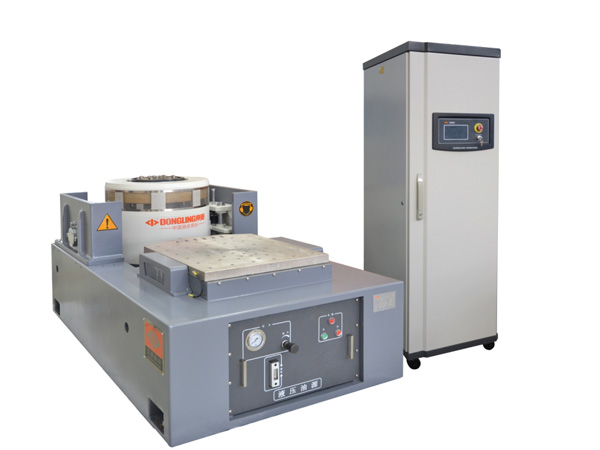

Dongling ES-30LS4-370 Air-cooled Vibration Test System (30/30, 60 kN)

Sine/Random Force (kN): 30/30

Shock Force @6ms (kN): 60

Frequency Range (Sine) (Hz): 5-2600

Frequency Range (Random) (Hz): 5-2600

Max. Acceleration (Sine) (g): 85

Max. Acceleration (Random) (g): 51

Max. Velocity (m/s): 2.4

Max. Displacement (mm): 100

Max. Load (kg): 500

Resonance Point (Hz): 2400

Shaker Model: ET-30LS4-370

Moving Part Mass (kg): 35

Armature Diameter (mm): 370

Mass (kg): 2540

Dimension (L*W*H) (mm): 1328*854*1213

Isolation Airbag Resonance Frequency (Hz): 2.5

Power Amplifier Model: SDA-30

Output Power (kVA): 30

Power Consumption (kVA): 54

Mass (kg): 500

Dimension (L*W*H) (mm): 620*1010*1950

Blower Model: B-3000

Power (kW): 7.5

Flow Rate (m3/s): 0.52

Pressure (kPa): 5.8

Dimension (L*W*H) (mm): 927*644*1440

Mass (kg): 180
