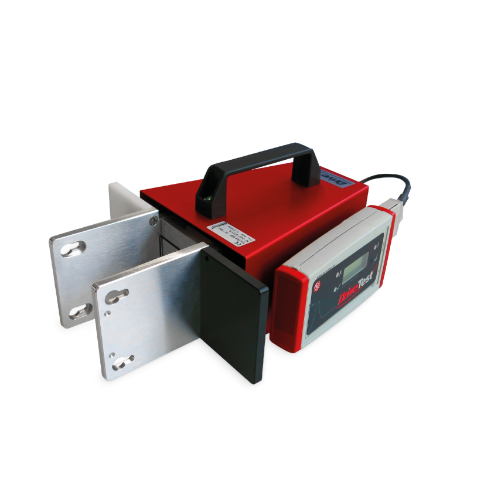

- BIA600:
Application of force: on both sides
Measuring range: 0 ... 700 N
Accuracy:
+/– 3 N (0–100 N)
+/– 3 % (>100 N)
Spring rate: 10 N/mm
Opening width: 90 mm / 3.5"
Area: 100 x 100 mm / 3.9 x 3.9"
Force sensor: DMS bridge
Dimensions: 320 x 250 x 110 mm / 12.5 x 9.8 x 4.3"
Weight: 3.0kg / 6.6 lb
- Display device SEB2:
Data logger unit with LCD display and LED status indicators, control button, serial interface
Optional PC-controlled measurement
9 V battery supply
Real time clock
Memory for 100 measurements
Sensor and PC interface
Peak display
Rating display i. O./n. i. O.
- Spacers:
Complete set for all opening widths according to EN 14752:2015
Automatic detection of the spacers used
Automatic limit value adjustment according to opening width
Easy to use, quick assembly without tools
Robust design, low weight, POM
Together with BIA 600 sensor, SEB2 in a carrying case
- PC evaluation software PinchPilot:
Multilingual (DE, EN, IT, FR, ES)
Graphic representation of the force curve
Calculation of the standard-relevant characteristic values
Evaluation according to different guidelines possible
Custom policy adjustable
Log printout
Data export (Excel, CSV, PDF)
Optional measuring point identification
- System requirements software PinchPilot (see tab Software/App)
Delivery Scope:
1 x Closing force measuring device BIA600 incl. connection cable
1 x Indicator SEB2 data logger unit with LCD display and LED status indicators, control button, serial interface
1 x 9V battery
1 x Spacer (4 pieces) according to EN 14752:2015
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x PinchPilot PC software, suitable for Windows XP, Vista, W7, W8, W10
1 x User Manual
1 x ISO calibration certificate
