Battery
• Type: Li-Po (User-replaceable); 1-cell, 8800 mAh
• Recharge time: 2 hours
AC Adapter
• Input voltage: 90 – 264 V AC, 47-63 Hz
• Output voltage: 12 V DC
• Output current: 3 A
Output data
• Test current range: 1 mA – 10 A DC
• Maximum DC output voltage: 4.2 V
Measurement
• Resistance range: 0.1 μΩ – 3 kΩ
• Resolution
0.1 – 999.9 μΩ: 0.1 μΩ
1 – 9.999 mΩ: 1 μΩ
10 – 99.99 mΩ: 10 μΩ
100 – 999.9 mΩ: 0.1 mΩ
1 – 9.999 Ω: 1 mΩ
10 – 99.99 Ω: 10 mΩ
100 – 999.9 Ω: 0.1 Ω
1000 – 2999 Ω: 1 Ω
Display
• LCD display TFT 2.8 in (43.2 mm x 57.6 mm) / 1.8 in x 2.3 in 320 x 240 pixels
Memory
• Internal: 32 GB SD Card

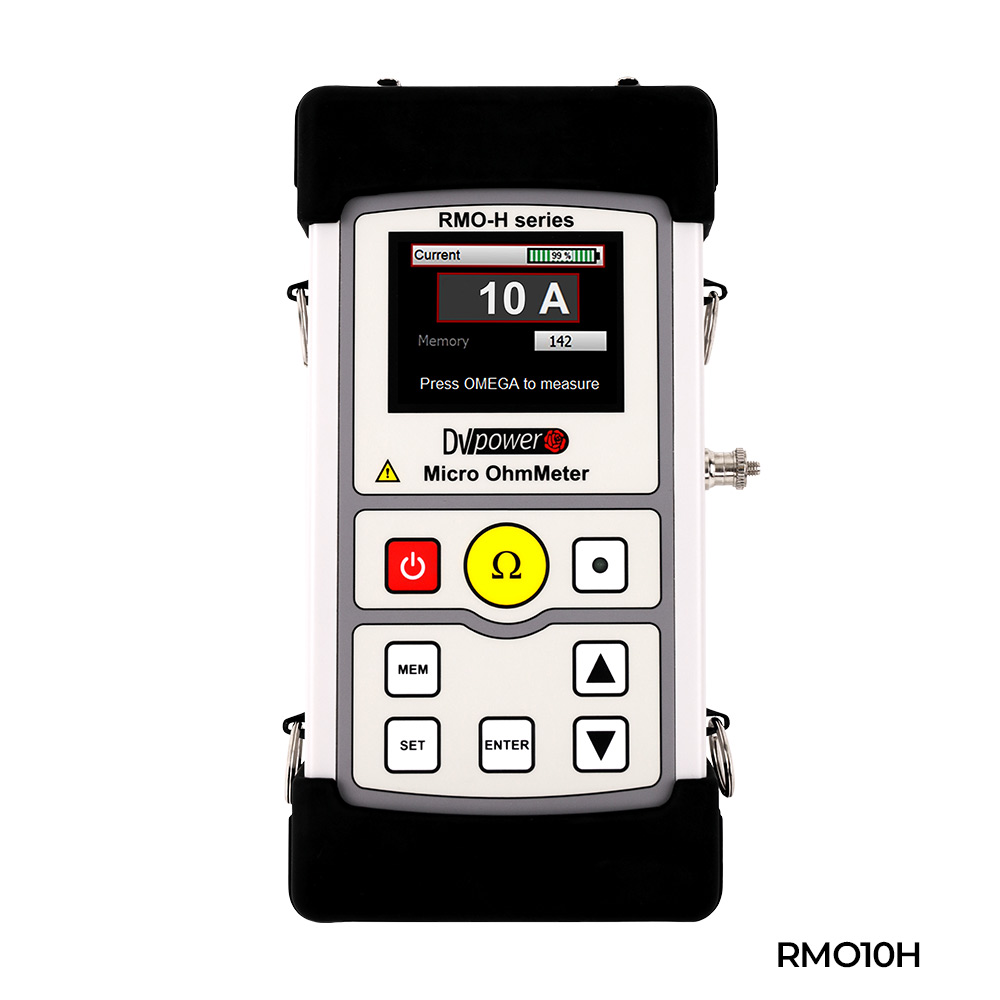

• RMO10H can store up to 10 000 measurements
Environment conditions
• Operating temperature: -10 ºC - +55 ºC / +14 ºF - +131 ºF
• Storage & transportation temperature: -40 ºC - +70 ºC / -40 ºF - +158 ºF
• Humidity: up to 95 %, non-condensing
Dimensions and Weight
• Dimensions (L x W x D): 226 mm x 116 mm x 50 mm/ 8.9 in x 4.5 in x 1.9 in
• Weight: 0.95 kg / 2.1 lbs
