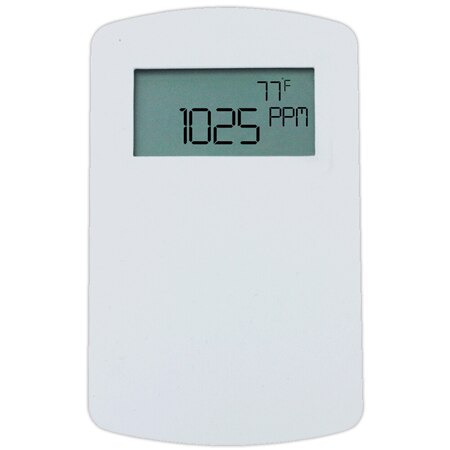

Dwyer CDT-2N4E Indoor Air Quality CO2 & Temp Transmitters – Universal Output – LCD Display (RH: NDIR; Temp: Pt1000 Ω RTD, 2000 ppm)
Manufacturer: Dwyer Model: CDT-2N4E - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Compliance: CE
Sensor Life: 15 Years
Sensor Type: RH: NDIR; Temp: Pt1000 Ω RTD
Switch Type: N/A
Display Type: N/A
Output Detail: CO2 Output: 4-20 mA / 0 to (5 or 10) VDC
Output Signal: Current, Voltage, RTD
Supply Voltage: 19 to 28 Vac/16 to 35 Vdc
Measurement Type: Carbon Dioxide, Temperature
Electrical Output: 4 to 20 mA
Power Consumption: Average: 2 W; Peak: 3.75 W
Relative Humidity: 0 to 85% RH Non-Condensing
Supply Power Type: AC/DC
Mounting Orientation: North American Style Wall Mount
Temperature Accuracy: ± 1 °C
Voltage Output Range: 0 to 5 Vdc, 0 to 10 Vdc
Carbon Dioxide Accuracy: ± 40 PPM + 3% rdg
Temperature Input Range: 35 to 122°F
Temperature Output Range: Pt1000 Ω RTD
Operating Temperature, Max: 122 °F
Operating Temperature, Min: 32 °F
Carbon Dioxide Response Time: 120 s (τ90)
Carbon Dioxide Concentration, Max: 2000 ppm
Carbon Dioxide Concentration, Min: 0 ppm
