Weight: 6.7 oz
Accuracy: ± 0.05 % ± 0.1 mV
Mounting: Panel Mount
Compliance: CE
Input Type: Voltage, Current, digital I/O
Resolution: 0.04 mV, max

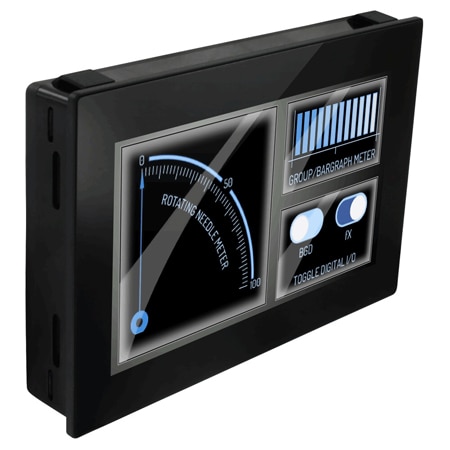

Display Note: 4.3˝ (10.9 cm) TFT LCD with 262k colors
Display Type: Color LCD
Warm Up Time: 15 sec
Output Detail: 4 Pulse Switch Modulation, 2 Open Collector Alarm
Sampling Rate: 10 Hz (10 updates/second)
Supply Voltage: 5 to 30 Vdc
Resolution Note: 0.04 mV (max ) or 4 Decimal Places
Power Consumption: 400 mA
Supply Power Type: DC/USB
Display Resolution: 480 x 272 pixels
System Requirements: Compatible with Windows® 7, Windows® 8 and Windows® 10
Electrical Connection: Screw Terminal, multiple DIL IDC sockets, USB mini-B
Current Measurement Range: 4 to 20 mA
Voltage Measurement Range: 4 x ± 40 V
Operating Temperature, Max: 104 °F
Operating Temperature, Min: 32 °F
