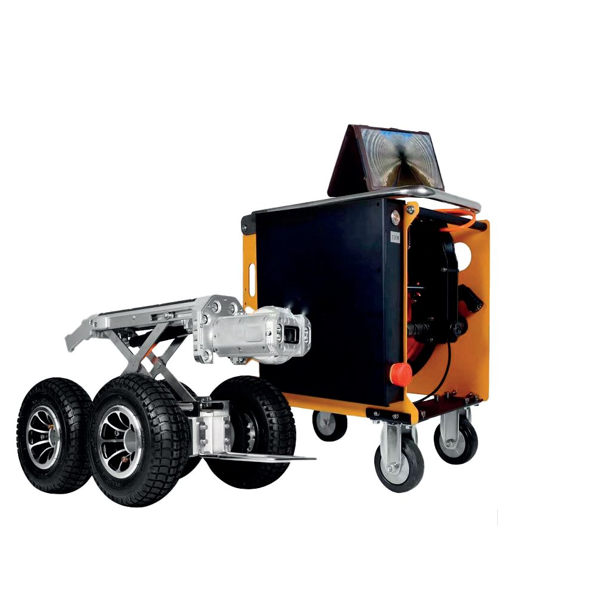

E inspection tools FB20P Pipe inspection camera (1920 x 1080 pixels)

Camera Head

Front camera: SONY CCD sensor, FHD picture, auto focus

Resolution: 1920 x 1080 pixels

Rotation: Pan 360° Tilt 270°

Zoom: 10 times optical, 12 times digital

Lights: Main 4pcs high brightness LED lights and auxiliary 14pcs subsidiary lights to make it clear in dark pipes.

Laser range finder: To measure the width of leakage (optional)

Rear camera: CCD sensor, color picture, 1920 x 1080 pixels. High brightness LED lights.

Waterproof leve: IP68

Crawler Tire:  6pcs 75mm, 4pcs 130mm, 4pcs 200mm, 4pcs 230mm

Application pipe: Φ200 to Φ2000mm

Drive: 6-wheels drive. Traction ≥80W, max 6700 RMP

Max speed: 35 meter per minute

Dimension: 545L x 180W x 165H mm (with 75mm tires)

Control system

10.4”tablet, 2000 x 1600 pixels, built-in GPS module; human-machine interface could indicate the status of crawler in the pipes.

Storage: 6G flash, 128G memory

Weight: ≤1kg

Cable wheel length: Standard 120m. Max length 200m. Cable diameter: Φ7.5mm

Remote control: Could control the direction, speed, zooms, rotation, lifting, and brightness of crawler. Wireless distance 10m.

Built-in GPS module.
