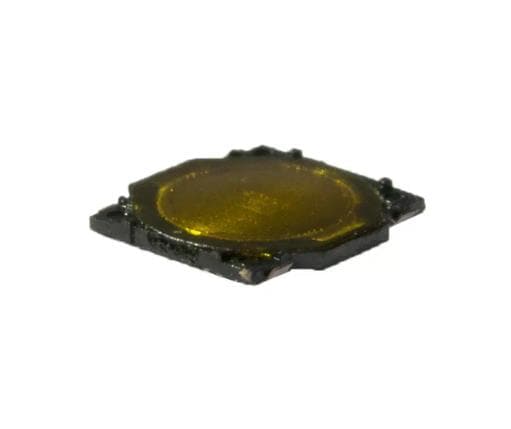

E-Switch TL3312NF160Q Tactile Switches 50mA 12VDC .25mm H 160gf SPST 3.7x3.7mm
Manufacturer: E-Switch Model: TL3312NF160Q - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Life: 500000 Cycle
Width: 3.7 mm
Height: 0.35 mm
Length: 3.7 mm
Travel: 0.15 mm
Actuator: Round
Illuminated: Non-Illuminated
Unit Weight: 289.394 mg
Contact Form: SPST
Current Rating: 50 mA
Mounting Style: SMD/SMT
Contact Plating: Silver
Ground Terminal: No
Operating Force: 160 gf
Switch Function: OFF - (ON)
Termination Style: SMD/SMT
Voltage Rating DC: 12 VDC
Mounting Direction: Straight
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
