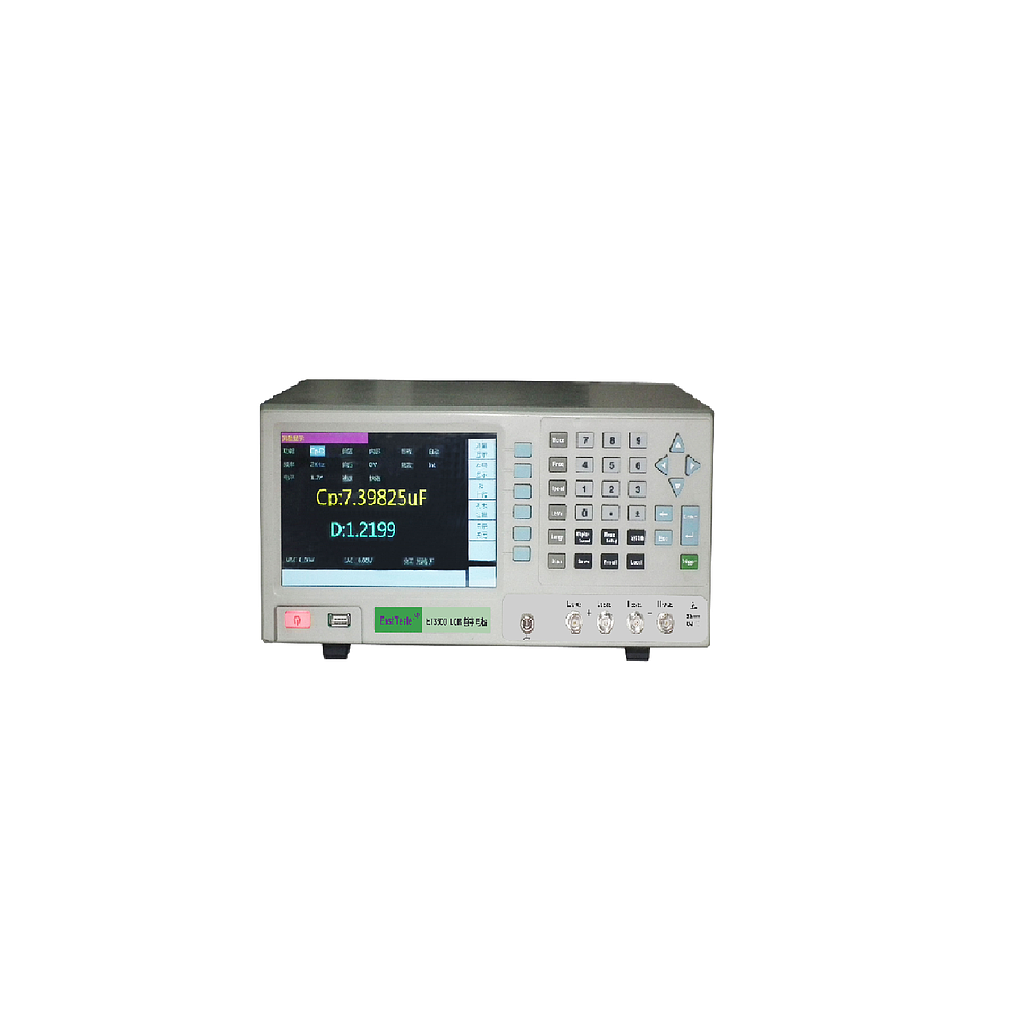

Product Parameter
Test signal frequency range: 10Hz-200kHz
Frequency Resolution and Accuracy: Resolution 1 mHz, accuracy 0.01%
Test parameters:
Cp-D，Cp-Q，Cp-G，Cp-Rp，Cs-D，Cs-Q，Cs-Rs，
Lp-D，Lp-Q，Lp-G，Lp-Rp，Ls-D，Ls-Q，Ls-Rs，
Rs-Xs，|Z|-θr，|Z|-θd，|Y|-θr，|Y|-θd，G-B
Measuring display speed (> 100Hz): Fast 50 times per second (20ms), moderate 10 times per second (100ms), slow 1.25 times per second (800ms)
Customized measurement speed(> 1kHz): It can be set between 0.5 times per second and 200 times per second
LCR parameter display range:
Cp、Cs：0.001000pF~99.9999F
Lp、Ls：0.001000nH~99.9999kH
Rp、Rs、|Z|、Xs：0.001000mΩ~999.999MΩ
G、B、|Y|：0.001000μS~999.999kS
θr：±0.000001rad~3.14159rad
θd：±0.000001deg~179.9999deg
D：±0.000001~9.99999
Q：±0.001~99999.9
Test signal voltage range: 0～2Vrms
Voltage Resolution and Accuracy: Resolution 1 mV, accuracy 5%+5 mV
Test signal current range: 100μArms～20mArms
Current Resolution and Accuracy: Resolution 10 μA, Accuracy 5%+50 μA
DC bias voltage source:
Internal: - 2V ~+2V voltage bias, - 20mA ~+20mA current bias
External: - 60V ~+60V Voltage Bias
Internal resistance of signal source: 30 ohms, 100 ohms optional
Basic accuracy: 0.05%
Display resolution: 6 1/2 digit
General Technical Specifications
Power voltage: 220V.AC ±10%, 50Hz,Optional 110V.AC ±10%, 50Hz;
Power consumption: <20W;
Display: 7” TFT LCD, with a resolution of 800*480;
Interfaces: Ethernet, RS232, GPIB, USB and Handler interfaces;
Service environment: 0°C-40°C;
Sizes: 330mm*285mm*136mm (L*W*H);
Weight: 3.6kg..
Standard accessories:
Three-core power cord
4-terminals of kelvin testing cable
Gilded short circuit bar
Optional accessories:
GPIB cable
RS232 serial port line
USB cable
2m/4m test cable
SMD components t testing fixture
LCR testing pen/4-lines SMT components testing fixture
Kelvin testing fixture
