Applications
Soil profile description and classification
Soil sampling above and below groundwater table
Environmental soil research
Undisturbed sampling
Specifications
Connection: Screw thread
Drilling diameter: Maximum 10 cm
Maximum sample depth: 8 m
Power supply: Gasoline
Product material: Iron, other material
Sample diameter: 40 - 100 mm
Sample length: 50 - 100 - 200 cm
Sample specification: Undisturbed
Sample stored in: Foil, tube
Sampler position: Vertical
Package size: 223 x 80 x 80 cm
Weight: 375 kg
Description
The percussion drilling set is perfect for soils with bricks, large or many stones, for example in urban areas or industrial sites. With this drilling set you get beautiful clean samples without the use of lubricants. The set is equipped with extremely robust rods and gouges. The different diameters allow efficient, fast and light work. Please note that this set does not replace cutting with a diamond core and is not intended for fibrous material. Do not use the set on dry glacial loam, porosity is required.
RD32-connection
The percussion drilling sets are equipped with RD32-connection extension rods and percussion gouges are screwed together using a coupling sleeve. The RD32-connection is used in firmer, dryer soils. The RD32-connection takes very little time to attach and take off. The RD32-rods connect together by means of a coupling sleeve, which means that the massive extension rods have the same diameter along the entire length, which makes them very strong.

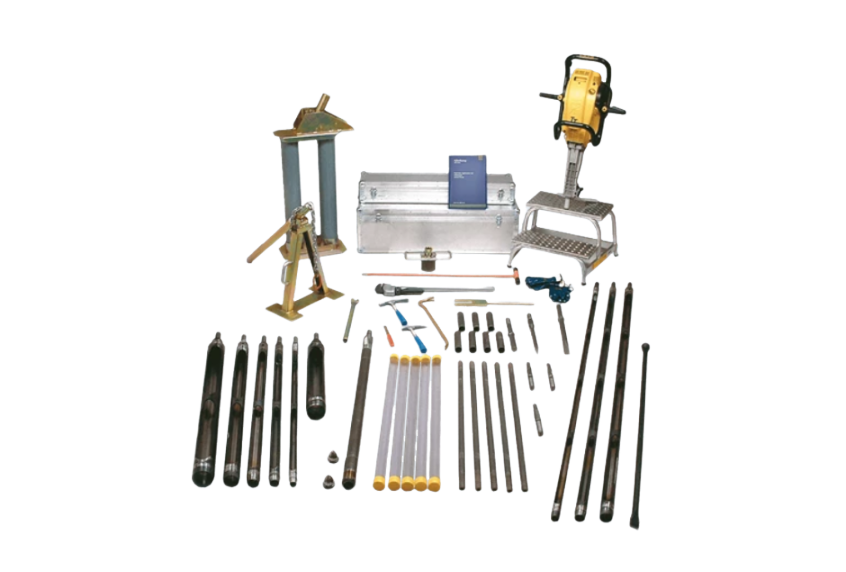

Set contains
Gasoline driven percussion hammer with accessories and wooden transport box
Various extension rods
Coupling sleeves
Percussion gouges (combination type for various types of soil) in various diameters and lengths
Core sampler for PVC sample tubes and foil liners
Mechanical rod puller
Universal casing and rod puller clamp
Rod puller extension for the extraction of the first gouge
Crow bar
Accessories to empty and clean the gouge
Lifting jack with lever and chain
Utility probe for safe cable finding
Stairs for use with the percussion hammer in the field
Aluminium transport cases
For larger depths we offer (Sonic)drilling and CPT equipment.
