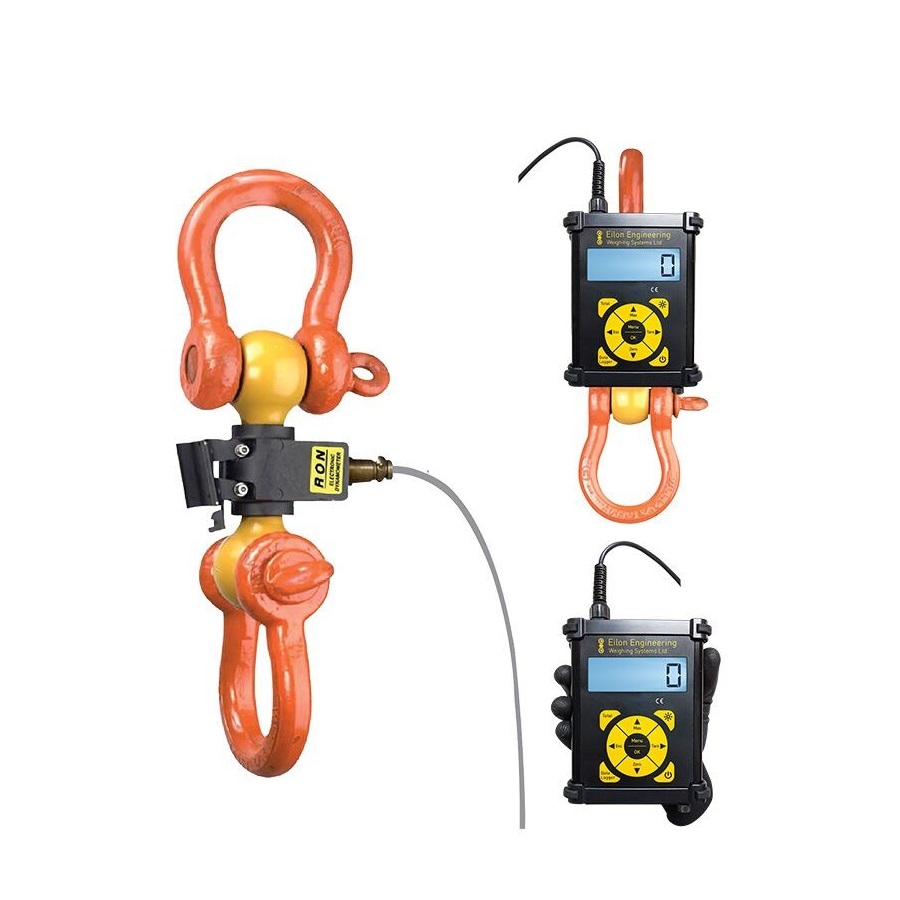

Eilon engineering Ron 2125S Wired Dynamometer (150 tons, 0.1%)

Full Range: 150 tons

Resolution: 20kg

Load cell weight: 57kgs

Cable length: 15m

H1 (max.): 350mm

H2 (max.): 145mm

B (max.): 211mm

Ø D1 (max.): 210mm

Ø D2 (min.): 106mm

Matching anchor shackle size: Widebody 200t

Safety factor: 5:1

Accuracy: 0.1% of full range.

Load Cell Material: high-strength, aerospace quality, alloy steel, polyurethane coated.

Proof Load: Each system proof-loaded to 200% of capacity (certified) up to a test force of 400t.

Display: 6 digits, 1" (25mm) liquid crystal display. Overload warnings (100%/130%), Max (peak hold), low battery indication, Gross/Net. Refresh rate 1Hz.

Sampling Rate: 200 per second

Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons.)

Housing: Aluminum indicator, ABS load cell.

Temperature Range:

    Load cell: -15°F to +175°F (-25°C to +80°C).

    Indicator: -4°F to +158°F (-20°C to +70°C).

Environmental: IP65 (Optional IP67 Load Cell).
