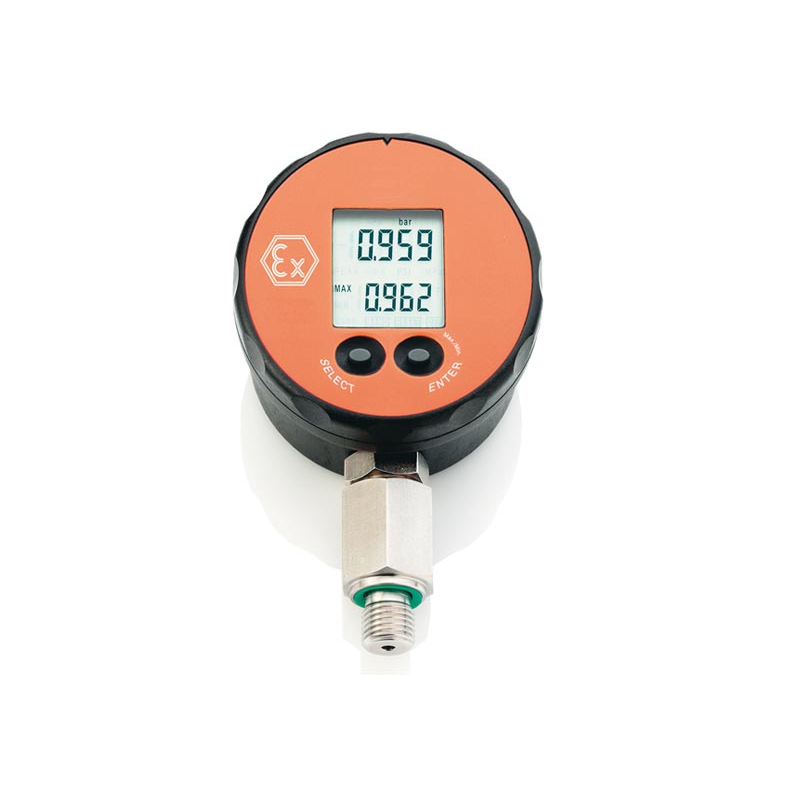

EiUK P11EX-40 Intrinsically Safe Digital Pressure Gauge (-1 ~ 40 bar(g)/0-41 bar(a))

Range: -1 to 40 bar(g)/0-41 bar(a)

Resolution: 0.01 bar

Over Pressure: 40 bar

Accuracy (RT): better than ± 0.1 % FS at room temperature

Accuracy: better than ± 0.2 % FS including temperature error (0-50 C)

Accuracy Includes linearity, repeatability and hysteresis:

Compensated Temperature range: -0 °C to 50 °C

Pressure Units: bar, mbar/hPa, kPa, MPa, PSI, kp/cm2

Storage temperature: -20 °C to 70 °C

Operating Temperature: -0 °C to 50 °C

Pressure Connection: G 1/4 Male

Display: 4 1/2 digits

Dimension: 76 x 118 x 42 mm

Weight: 210 g

Protection: IP 65

Power: 3 V battery, type CR 2430

Battery life: 1000 hours continuous operation in Mano-Mode; 150 hours continuous operation in Peak-Mode

ATEX: II 1 G EEx ia IIC T6 or T5

Supplied with: Battery, plastic carrying case, calibration certificate and instruction manual
