Manufacture: Elcometer
Model: C304CDL
Origin: England
Warranty: 12 month
Transducer Probe type: Dual Element
Measurement & Thickness range:
+ Pulsed Echo (PE): 0.63 - 500mm
+ Echo Echo ThruPaint (EE): 2.54 - 25.40mm
Measurement & Velocity Range Velocity Mode (VM): 1,250-10,000 m/s
Measurement Accuracy: ±1% or 0.05mm
Resolution: 0.1mm or 0.01mm
Measurement Rate: 4, 8 & 16Hz (4, 8 & 16 readings per second)
Operating Temperature: -10 to 50°C
Data Output: USB & Bluetooth
Power Supply: 2 x AA batteries
Battery Life: Alkaline: Approx. 15 hours Lithium: Approx. 28 hours
Gauge Weight: 210g - including batteries, without transducer
Gauge Dimensions: 145 x 73 x 37mm - without transducer
Packing List: Elcometer 304 Ultrasonic Material Thickness Gauge, ultrasonic couplant, plastic transit
case, carry pouch, 3 x screen protectors, wrist harness, 2 x AA batteries, operating
instructions, calibration certificate, ElcoMaster Software CD & USB cable
Note: The Elcomneter 304 is supplied as a gauge only, without with the transducer must be ordered separately

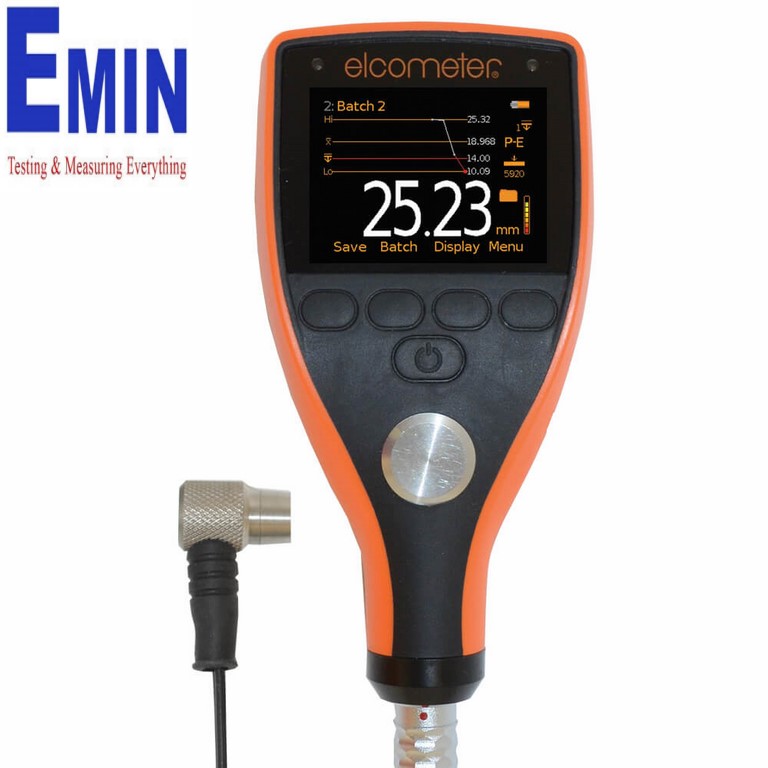

Elcometer 304 Ultrasonic Material Thickness Gauge
Technical Specification
|
Product Features |
|
|
Material Thickness Gauge |
C304CDL |
|
Easy to use menu structure in multiple languages |
■ |
|
Tough, impact, waterproof & dust resistant; equivalent to IP54 |
■ |
|
Bright colour screen; with automatic or manual brightness adjustment |
■ |
|
Scratch and solvent resistant display; 2.4" (6cm) TFT |
■ |
|
Large positive feedback buttons |
■ |
|
USB power supply via PC |
■ |
|
Gauge software updates1 via ElcoMaster® Software |
■ |
|
Data Output |
|
|
USB; to PC |
■ |
|
Bluetooth®; to PC, Android™ & iOSǂ devices |
■ |
|
ElcoMaster® PC software |
■ |
|
2 year gauge warranty2 |
■ |
|
Limits; 40 definable audible & visual pass/fail warnings |
■ |
|
Auto transducer recognition & ‘V-path’ correction |
■ |
|
Measurement Modes |
|
|
Pulsed Echo (PE) |
■ |
|
Echo Echo ThruPaint™ (EE), Velocity Mode (VM) |
■ |
|
Measurement Rate |
4, 8, 16Hz3 |
|
Thickness Range;4 |
|
|
Pulsed Echo (PE): 0.63 - 500mm (0.025-20”) |
■ |
|
Echo Echo ThruPaint™ (EE): 2.54 - 25.40mm (0.100-1") |
■ |
|
Velocity Range; 1250-10,000m/s (0.0492 - 0.3937in/µs) |
■ |
|
Measurement Accuracy (whichever is the greater) |
±1% or ±0.05mm (0.002") |
|
Measurement Units; |
|
|
mm or inches |
■ |
|
m/s, inch/µs |
■ |
|
Repeatability / Stability Indicator |
■ |
|
Display Modes |
|
|
Reading |
■ |
|
Selected statistics, Scan thickness bar graph, Run Chart, Readings & Differential |
■ |
|
Selectable Reading Resolution |
|
|
Lo; 0.1mm (0.01 Inch), 10m/s (0.001 in/μs) |
■ |
|
Hi; 0.01mm (0.001 Inch), 1m/s (0.0001 in/μs) |
■ |
|
Statistics |
|
|
Number of readings (n), Mean (average) (x), Standard deviation (σ), Lowest reading (Lo), Highest reading (Hi), Coefficient of Variation (CV%) |
■ |
|
Low / High limit value, Reading Range Value, Nominal Value, Number of readings below low limit, Number of readings above high limit |
■ |
|
Calibration Options |
|
|
Zero (using the integrated zero disc) |
■ |
|
1-Point & 2-Point |
■ |
|
Material selection; 39 preset materials |
■ |
|
Factory; resets to the factory calibration |
■ |
|
Velocity (speed of sound) |
■ |
|
Known Thickness Value |
■ |
|
Calibration Features |
|
|
Calibration memories; 3 programmable memories with optional PIN calibration lock |
