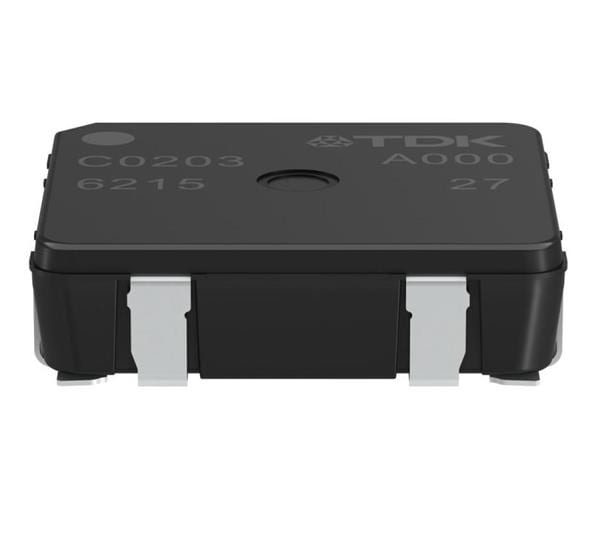

EPCOS B82453C0285A000 NFC/RFID Transponder Coils 6.30mH 3% Transpondr 3D Z Coil AEC-Q200
Manufacturer: EPCOS Model: B82453C0285A000 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 11.5 mm
Height: 3.6 mm
Length: 12.5 mm
Q Minimum: 19.5
Tolerance: 3 %
Inductance: 9 mH
Unit Weight: 1.700 g
Core Material: Ferrite
Qualification: AEC-Q200
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Maximum DC Resistance: 190 Ohms
Self Resonant Frequency: 360 kHz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
