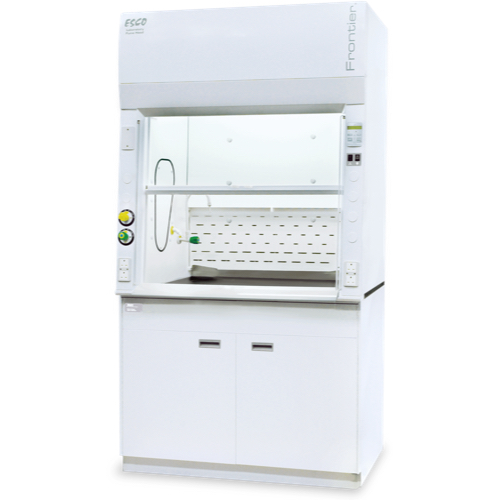

ESCO EFA-5UDRVW-8 Frontier® AcelaTM Fume Hood (220-240 VAC, 1300 x 675 x 1230 mm)

220-240 VAC, 50/60 Hz, 1ø

Nominal Size: 1.5 meter

External Dimensions: (W x D x H)

Fume Hood unit only: 1525 x 900 x 1400 mm

With Exhaust Collar: 1525 x 900 x 1521 mm

With Fully-opened Sash: 1525 x 900 x 1603 mm

Internal Dimensions: (W x D x H) 1300 x 675 x 1230 mm

Exhaust Outlet Diameter and Material: 305 mm (12.0”), Fiberglass

Number of Exhaust Collar: 1

Fluorescent Lighting System:

Description: Pre-wired hood lighting with electronic ballast for energy efficiency and instant start

Lamp Intensity: 915 lux

Controller: Rocker Switches (default). Option to upgrade to SentinelTM XL Microprocessor Controller

Construction:

Main Body: Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating

Internal Liner (default): Esco Resinate™

Worktop (default): Phenolic Resin

Sash Specifications:

Sash Material: Laminated-Tempered and Framed Safety Glass

Sash Configuration: Vertical

Sloping: 50° Sloped

Maximum Sash Opening: 670 mm

Electrical:

Cabinet Full Load Amps (FLA): 32 A

Cabinet Nominal Power: 100 W (lighting only)
