ETV Cameras 3388PT Pipe Inspection Camera (Φ28mm; cable 60m)

Camera Head

Camera Size: Pan & Tilt Ø28mm head (1080P full HD 40mm Head)

Auto Leveling Function

Sensor: 1/3" CMOS

Resolution: 960(H)×480(V)

View Angle: 130°

Focus Distance: 15cm (approx)

Depth-of-Field: 20cm(approx)

Front Lens: Sapphire glass

Water-Proof: 10m Under Water(Camera fix on Cable)

Shell Material: #304 stainless steel

Lighting: 2pcs Highlight White LEDS

Operating Temperature: -10~50℃/+14~+120℉

Storage Temperature: -20~60℃/+4~+140℉

Built-in 512Hz sonde (Option)

Skids Included: φ 50mm, φ 90mm

Cable Wheel

60M fiberglass rod cable

Dia. of push cable: 8mm

Material of cable: Fiberglass covered by PP

Wheel Diameter: 410×245×320 mm

LCD Monitor

Screen: 10-inch 16:9 Super bright HD color LCD screen

Resolution: 1024x600 pixels

Mirror and Flip: support image mirror, and flip

Audio Recording: local sound record

Output: TV and Audio output

On-screen date and time

On-screen meter/ft. distance display(optional)

External memory: support U Disk or SD card up to 256GB

Control box Size: 32.7×22.7×15.0cm

Battery Supply

Charger: DC 13.5V / 1700 mA

Lithium Battery: 6600mAh

Output: 12V DC, ≤73Wh

Battery Level Display-charge Indicate

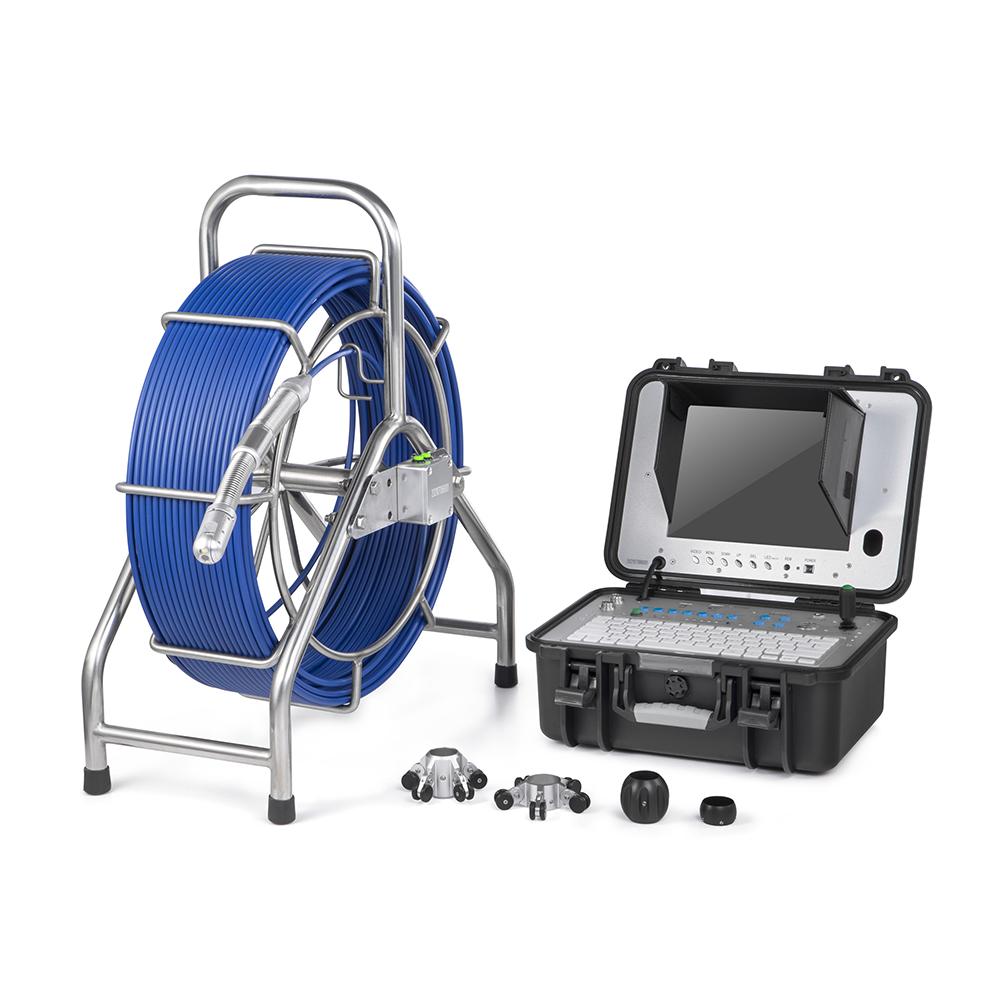

What's Included:

Control station with 10-inch LCD monitor, keyboard and joystick

Anti-glare screen visor

C28 pan tilt camera head

Built-In 512 Hz Sonde Transmitter

200-ft fiberglass cable and reel

Heavy-duty case

6600mA Li-ion battery

Power adapter

Interchangeable skids

This variation of the 3388PT features a multifunctional control station with our 28mm camera and 60m/200FT of durable 8mm push cable with a built-in footage counter. The 28mm Pan-Tilt 180/360 Camera Head controlled by a Joy Stick w/ automatic centering, paired with a 512Hz transmitter located in the spring kit, provides a clear and detailed diagnostic for welds, laterals etc. Comes with 2 crawler Skids and set of plastic leveling skids.

This system is widely used in inspections of Sewer, central air conditioning, chimney, plumbing, building, cable pipe and pipes ventilation systems and other places.
