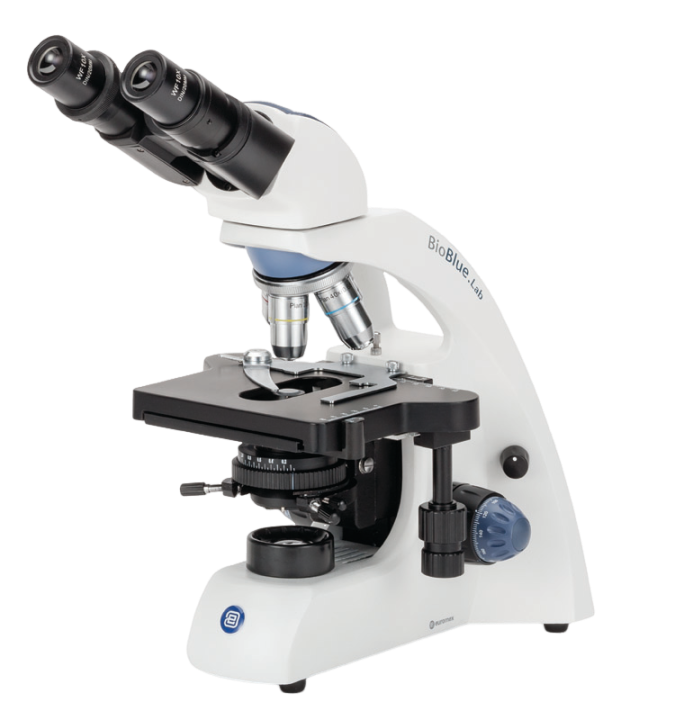

Euromex BB.1152-PL BioBlue.Lab binocular microscope (WF 10x/20 mm, 4/10/S40/S100x)

WF 10x/20 mm eyepieces

Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75 mm Reversed quadruple revolving nosepiece on ball-bearings

Plan 4x, 10x, S40x, S100x oil immersion objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput Coaxial coarse and fine adjustments with 200 graduations. Precision 1.5 μm, 0.3 mm per rotation. Total travel approximately 28 mm. Friction adjustment

Plain 140 x 150 mm stage with 75 x 40 mm mechanical rackless stage

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

3 W NeoLEDTM illumination. Internal power supply 100-240 V (CE)

Supplied with power cord, dust cover and 5 ml immersion oil in styrofoam case

Datasheet
