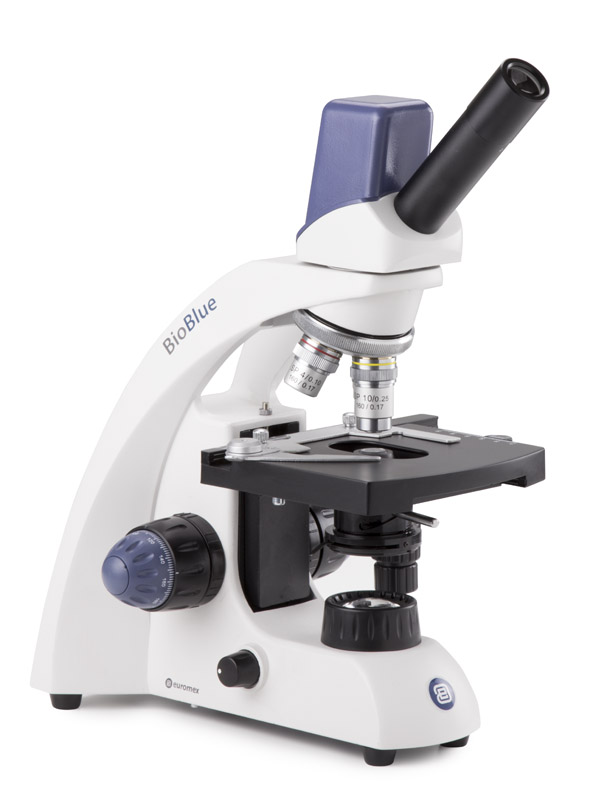

Euromex BB.4225 BioBlue monocular 5 MP digital microscope (WF 10x/18 mm, 4/10/S40x)

Secured DIN WF 10x/18 mm eyepiece with pointer

Monocular head, 45° inclined, 360° rotatable

Built-in 5 MP CMOS camera with USB-2 interface, 2560 x 1920 pixels

Reversed quadruple revolving nosepiece on ball-bearings

Semi plan 4x, 10x, S40x objectives.

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm, 0.4 mm per rotation. Total travel approximately 23 mm. Friction adjustment

130 x 130 mm stage with 70 x 28 mm mechanical stage

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

1 W LED illumination with 3 rechargeable batteries. Internal power supply 100-240 V

Paint with Antibacterial Protection Layer

Supplied with power cord and dust cover in styrofoam case
