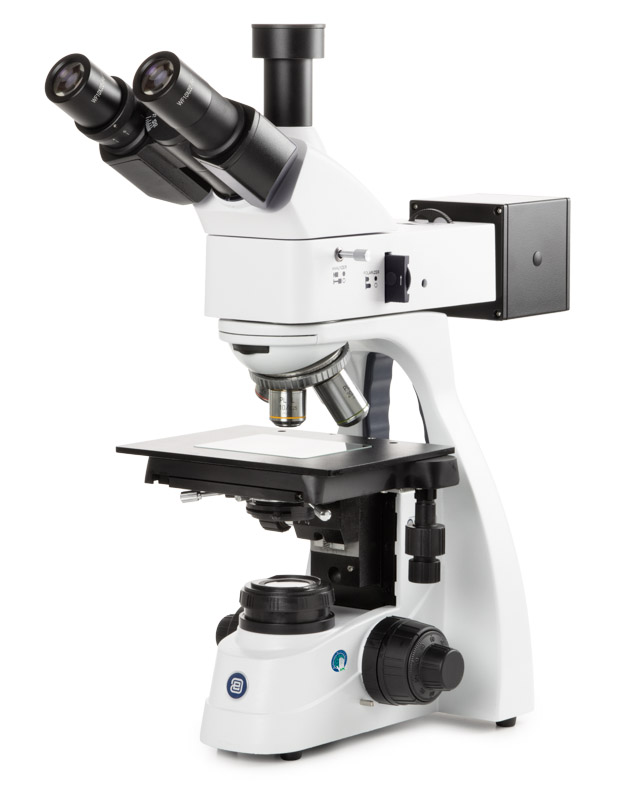

Euromex BS.1053-PLMi bScope trinocular microscope for Materials Sciences (HWF 10x/22 mm, 5/10/20/S50)

HWF 10x/22 mm eyepieces

Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-76 mm

Reversed quadtuple revolving nosepiece on ball-bearings

Plan PLMi 5x/0.12, 10x/0.25, 20x/0.40, S50x/0.70 infinity corrected IOS objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Coaxial coarse and fine adjustments with 180 graduations. Precision 1.1 μm, 0.2 mm per rotation. Total travel approximately 19 mm. Friction adjustment

Plain 185 x 140 mm rackless stage with 74 x 48 mm mm mechanical rackless stage

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

Reflected intensity adjustable 3 W NeoLED™ Köhler illumination with external power supply, push-pull type rotatable polarizer and push-pull analyzer, built-in condenser with iris diaphragm and field iris diaphragm. Integrated rotating filter disc with green, blue, yellow and white filters

3 W NeoLED™ Köhler illumination. Internal power supply 100-240 V (CE)

Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and without rechargeable AA-type batteries

Datasheet
