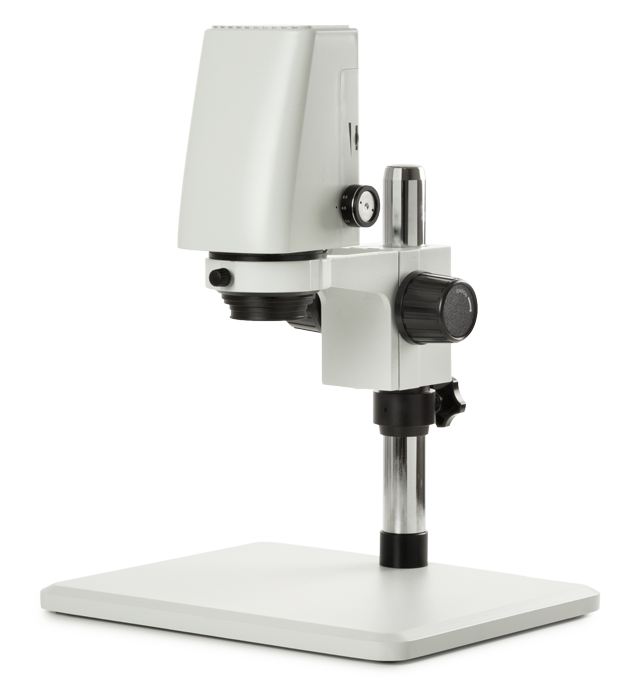

Euromex MZ.4600 MZ Digital MacroZoom series (0.7x ~ 5x)

Digital entry-level Macrozoom with 0,7x to 5x optical zoom with 0.7/1/1.5/2/2.5/3/4 and 5x adjustment engravings. Working distance 100 mm

Standard 320 x 260 mm pillar stand and head support. Max object height 22 cm. With adjustable LED ringlight illumination

Built-in 2 MP 1/2.8 inch CMOS camera 1080p, 2.9 µm x 2.9 µm pixels, 60 images per second

On-screen magnification from 2,5 to 19x @ 100 mm working distance

Field of view from 210 x 120 mm up to 27 x 15 mm @ 24 inch HD screen

One HDMI output to be connected to a HD screen (HD screen not supplied)

Two USB ports for standard supplied 32 GB (up to 64 GB) SD card and supplied wireless mouse that drives the built-in on-screen software

Images saving in .JPG or .BMP formats and .MP4 video formats

External 100-240 Vac / 12Vdc / 3W power supply

Datasheet
