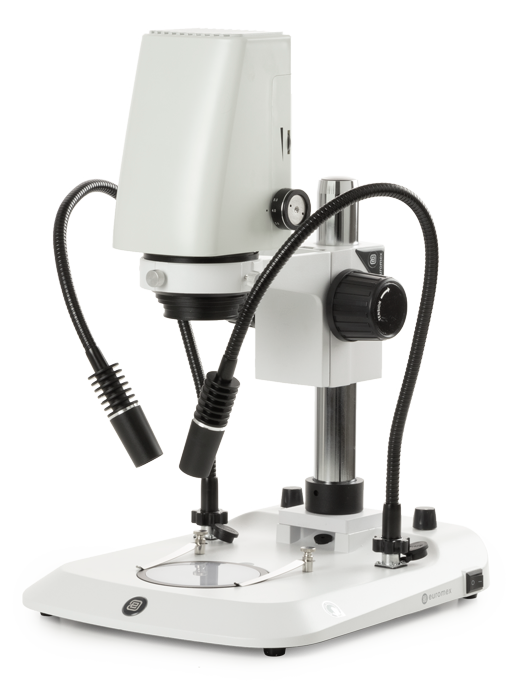

Euromex MZ.4600-NZ MZ Digital MacroZoom series (0.7x ~ 5x)

Digital entry-level Macrozoom with 0.7x to 5x optical zoom with LED ringlight and 0.7/1/1.5/2/2.5/3/4 and 5x adjustment engravings. W.D. 100 mm

Ergonomically designed pillar stand with two 3W goose-neck type incident LED illuminations on each side and a 3W transmitted LED illumination

Built-in 2 MP 1/2.8 inch CMOS camera 1080p, 2.9 µm x 2.9 µm pixels, 60 images per second

On-screen magnification from 2.5 to 19x @ 100 mm working distance

Field of view from 210 x 120 mm up to 27 x 15 mm @ 24 inch HD screen

One HDMI output to be connected to a HD screen (HD screen not supplied)

Two USB ports for standard supplied 32 GB (up to 64 GB) SD card and supplied wireless mouse that drives the built-in on-screen software

Images saving in .JPG or .BMP formats and .MP4 video formats

External 100-240 Vac / 12Vdc / 3W power supply
