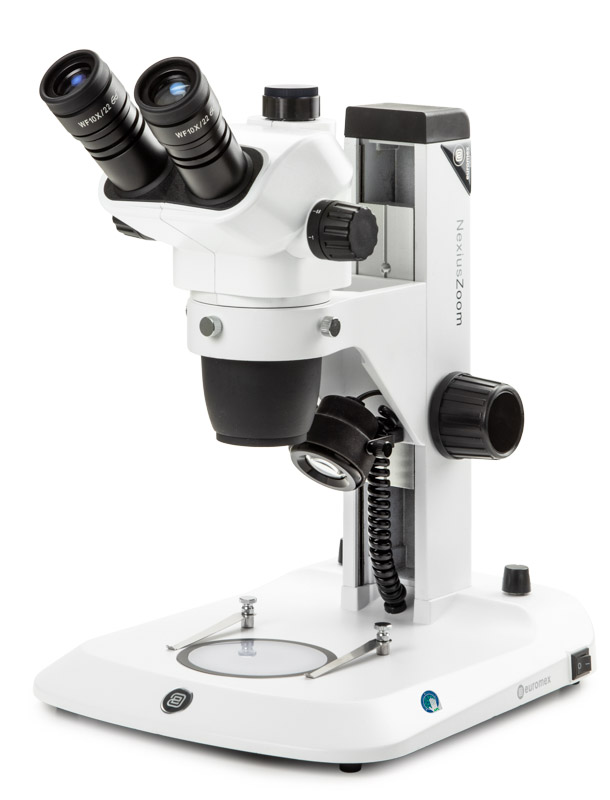

Euromex NZ.1903-S Trinocular stereo zoom microscope NexiusZoom (HWF10x/22, 6.7x ~ 45x)

Pair wide field eyepieces HWF10x/22mm without eyecups

Trinocular head with 45° inclined tubes

Diopter adjustment ± 5° on two tubes. Interpupillary distance adjustable between 54 and 75 mm

0.67x to 4.5x zoom objective, magnification from 6.7x to 45x

Field of view from 33 mm to 4.9 mm. Working distance 110 mm

Ergonomically rack and pinion stand. Maximum object height 58 mm

Supplied with opaque stage plate, white/black stage plate and 2 object clamps

Incident and transmitted 3W LED illumination with internal power supply

Both illumination intensities can be adjusted separately

Paint with Antibacterial Protection Layer

Supplied with dust cover in Styrofoam case
