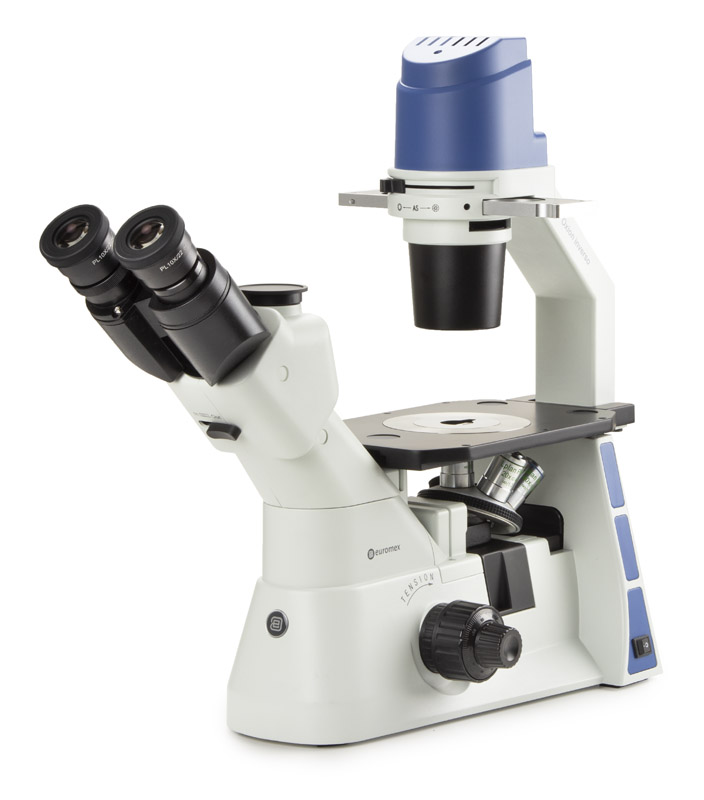

Euromex OX.2003-PLPH Inverted Oxion trinocular microscope (WF10x/22mm, 10x/20x/40x)

Pair HWF 10x/22 mm eyepieces

Trinocular head, 45° inclined tubes. Tubes can be positioned in upper or lower positions

Interpupillary distance 54-75 mm. Diopter adjustment on left eyepiece

Reversed quintuple revolving nosepiece on ball-bearings

Plan phase PLPH 10x, 20x, S40x IOS infinity corrected objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

250 x 230 mm stage

Supplied with glass insert with 30 mm hole, a metallic insert with 25 mm hole, a metallic insert for 35 mm diameter Petri dish holder

Coaxial coarse and fine adjustments. Precision 2 μm, 0.2 mm per rotation. Total travel approximately 25 mm

N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm

Supplied with slider with phase contrast annuli and green filter

Transmitted 5 W NeoLED™, intensity adjustable with internal power supply 100-240 V (CE)

Supplied with power cord and aluminium box

Datasheet
