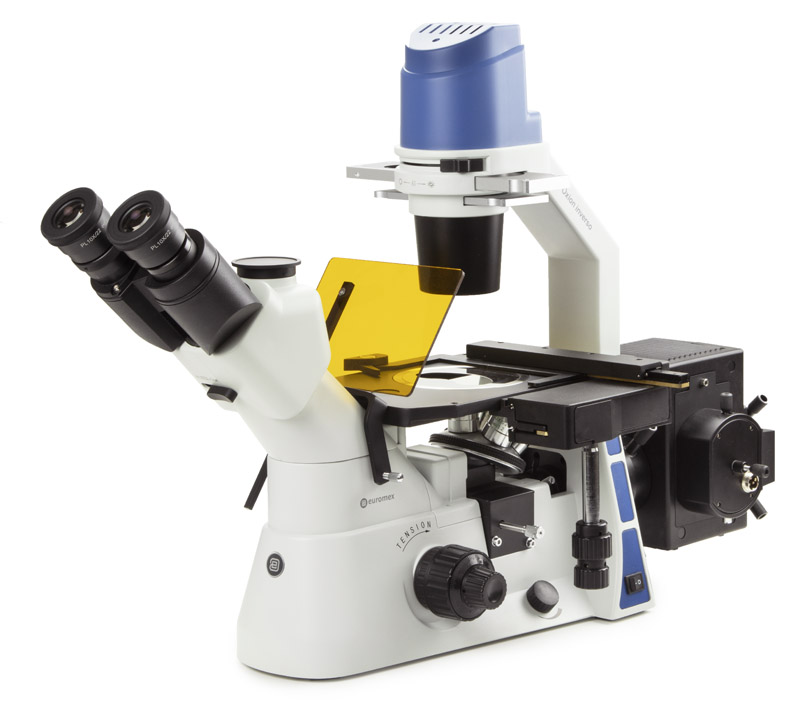

Euromex OX.2253-PLPHF Inverted Oxion trinocular microscope for fluorescence (WF10x/22mm, 10x/20x/40x)

Pair HWF 10x/22 mm eyepieces

Trinocular head, 45° inclined tubes. Tubes can be positioned in upper or lower positions

Interpupillary distance 54-75 mm. Diopter adjustment on left eyepiece

Reversed quintuple revolving nosepiece on ball-bearings

Plan Fluarex 10x and plan phase Fluarex PLPH 20x, S40x IOS infinity corrected objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

250 x 230 mm stage with 120 x 78 mm mechanical stage

Supplied with glass insert with 30 mm hole, a metallic insert with 25 mm hole, a metallic insert for 35 mm diameter Petri dish holder, a 76x26 mm slide holder with 54mm Petri dish holder and a Multiwell holder with 65 mm Petri dish holder

Coaxial coarse and fine adjustments. Precision 2 μm, 0.2 mm per rotation. Total travel approximately 25 mm

N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm

Supplied with slider with phase contrast annuli and green filter

Transmitted 100 W mercury vapor fluorescence and 5 W NeoLED™ brightfield/phase contrast illumination with internal power supply 100-240 V (CE) and UV protection shield

Supplied with 2 filter blocks with standard filter sets:

- Blue: EX465-495 DM505LP EM515-558,

- Green: EX500-580 DM600LP EM605-665

Supplied with power cord and transportation box
