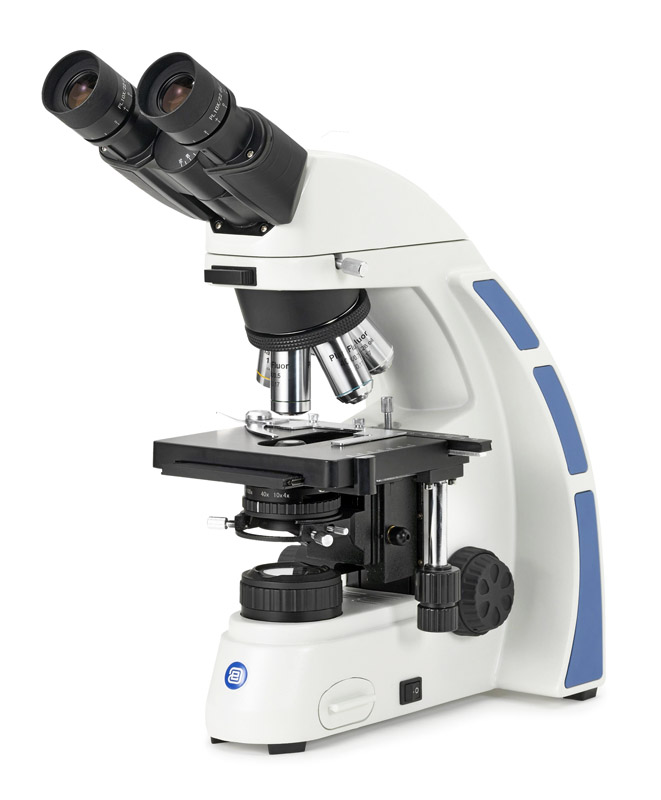

Euromex OX.3030 Binocular Oxion microscope (HWF 10x/22 mm, 4/10/S40/S100x)

HWF 10x/22 mm eyepieces

Binocular head, 30° inclined tubes. Tubes can be positioned in upper or lower positions

Interpupillary distance 50-75 mm

Diopter adjustment on both eyepieces

Reversed quintuple revolving nosepiece on ball-bearings

Plan 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

150 x 140 mm stage with 76 x 50 mm mechanical stage

Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per

rotation. Total travel approximately 28 mm

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

Condenser with slot for optional slider with darkfield or phase contrast

Diascopic 3 W NeoLED™ Köhler illumination with adjustable intensity with internal power

supply 100-240 V (CE)

Supplied with power cord, dust cover and 5 ml oil immersion, in styrofoam case
