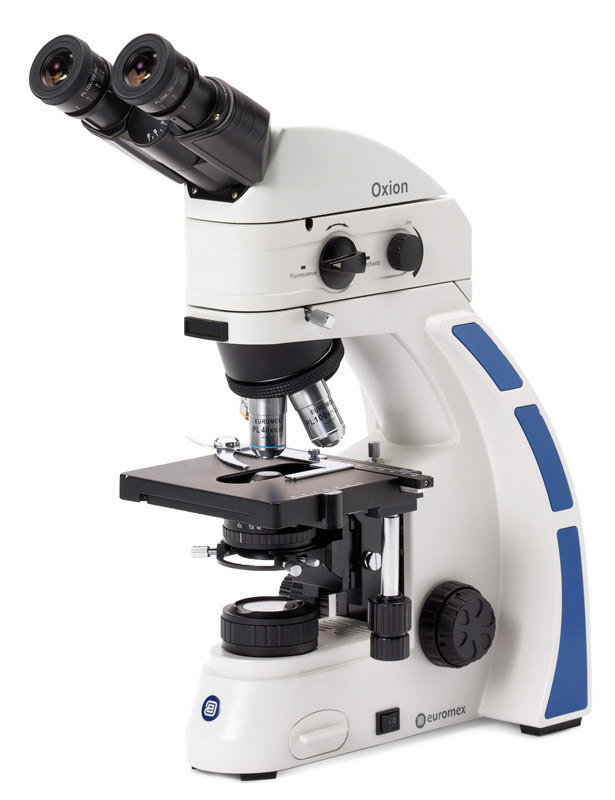

HWF 10x/22 mm eyepieces
Binocular head, 30° inclined tubes. Tubes can be positioned in upper or lower positions
Interpupillary distance 50-75 mm
Diopter adjustment on both eyepieces
Reversed quintuple revolving nosepiece on ball-bearings
Plan PL 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
150 x 140 mm stage with 76 x 50 mm mechanical stage
Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotation. Total travel approximately 28 mm
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Condenser with slot for optional slider with darkfield or phase contrast
Diascopic 3 W NeoLED™ Köhler illumination with adjustable intensity with internal power supply 100-240 V (CE)
Reflected 455 nm LED epi-illumination attachment with a single cube with filters for Auramine-O fluorochrome EX 425-475 DM 485 EM 495 LP. External power supply
Supplied with power cord, dust cover and 5 ml oil immersion, in styrofoam case
