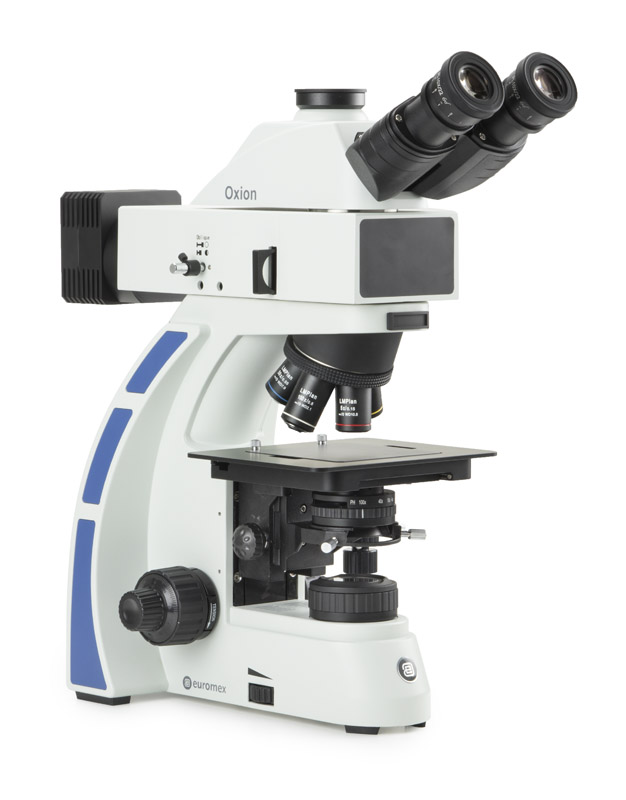

Euromex OX.3240 Trinocular Oxion LED microscope (HWF 10x/22 mm, 5x/10/20x)

HWF 10x/22 mm eyepieces

Trinocular head, 30° inclined tubes. Tubes can be positioned in upper or lower positions

Interpupillary distance 48-75 mm

Diopter adjustment on both eyepieces

Reversed quintuple revolving nosepiece on ball-bearings

LWD M-plan 5x, 10x, 20x IOS infinity corrected objectives and LWD M-plan semiapochromatic 50x IOS infinity corrected objective.

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

150 x 140 mm stage with 76 x 50 mm mechanical stage

Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotation. Total travel approximately 28 mm

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

Condenser with slot for optional slider with darkfield or phase contrast

Diascopic 3 W NeoLED™ Köhler illumination with adjustable intensity with internal power supply 100-240 V (CE)

Reflected 3 W NeoLED™ Köhler epi-illumination attachment with external power supply.

Supplied with blue, green and white balance filter mounted in slider

Standard: Supplied with analyzer and rotatable polarizer. Oblique illumination

Supplied with power cord and dust cover in styrofoam case
