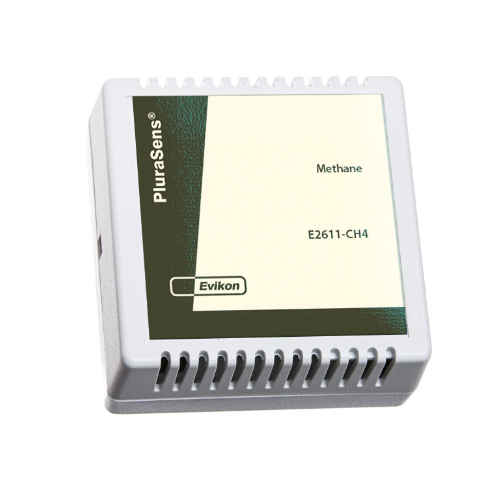

Calibration: methane CH4
Sensor type: metal-oxide semiconductor
Sampling method: Diffusion
Detection range:0...100% LEL CH4
Resolution:0.1% LEL CH4
Sensor lifetime: > 5 years
Power supply: 12...36 VDC (default), 24 VAC or 230 VAC as options
Digital interface: RS485, Modbus RTU protocol
Analog outputs:2 × 4-20 mA / 0-10 V, user settable
Output relays: 2 × SPST relays (switch-over contact), 250 VAC / 30 VDC, 5A max
Alarms: buzzer 85 dB
Default alarm set points:20% LEL / 50% LEL CH4
Enclosure: light-grey ABS plastic with ventilation slots, IP20
Dimensions: H85 × W85 × D37 mm
Operating conditions: -30...+70 °C, 0...95%RH
