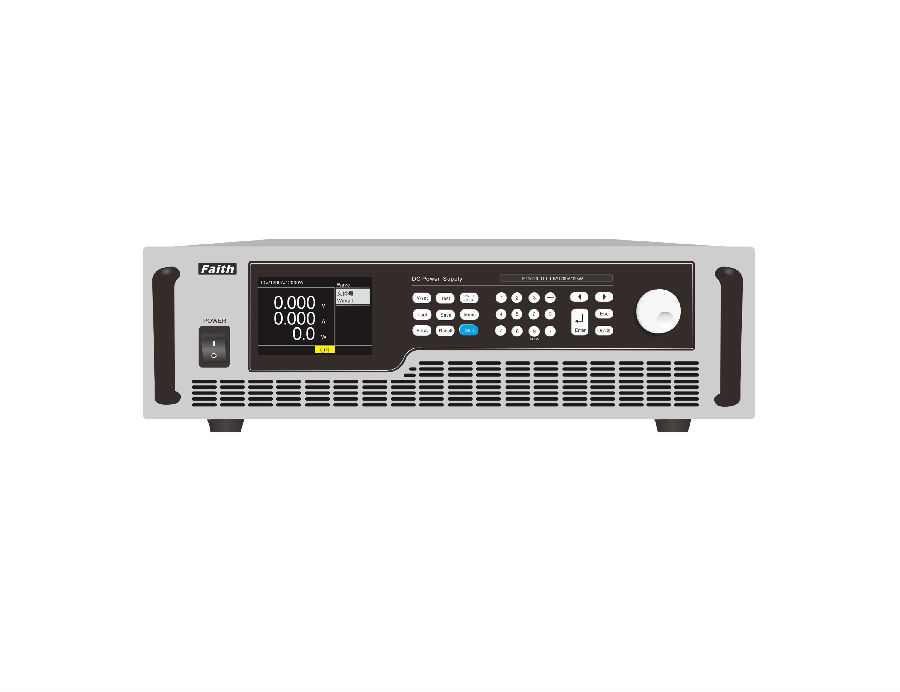

Voltage: 0~160V
Current: 0~31.5A
Power: 5KW
Dimension W x H x D: 482.6mm x 132.0mm x 694.5mm
Weight: 18.5kg
AC Input: 3 Phase input, 340VAC ~ 420VAC, 47Hz ~ 63Hz
Output Voltage: 0 ~ rated voltage (Max 1500V)
Output Current: 0 ~ rated current (Max 10000A)
Output Power: 0 ~ rated power (Max 600kW)
Efficiency: 0.87(Typical)
Line Regulation: Voltage: 0.01%F.S.; Current: 0.05%F.S.
Load Regulation: Voltage: 0.02%F.S.; Current: 0.1%F.S.
Analog Programming: V/I control; Support programming voltage: DC 0 ~ 5V/DC 0 ~ 10V input
Voltage Measurement Accuracy: 0.1%+0.1%F.S.
Current Measurement Accuracy: 0.1%+0.2%F.S.
Voltage/Current Monitoring: Voltage/Current monitoring output voltage: DC 0 ~ 10V
Protection: OVP/OCP/OPP/RVP/LVP/OTP
Transient Response: Typical 1ms
Voltage Temperature Coefficient: 20ppm/℃
Current Temperature Coefficient: 40ppm/℃
Display: 4.3’’ TFT color LCD
Operation: Function key, number key, and knobs
Communication: Standard RS232, LAN, optional GPIB
Memory capacity: 20 groups of fast recall parameters + 10 sequence files+ 1 waveform file
Cooling: Air cooling
Working Temperature: 0℃～40℃
Storage Temperature: -20℃～70℃
Altitude: <2000m
